CRPS

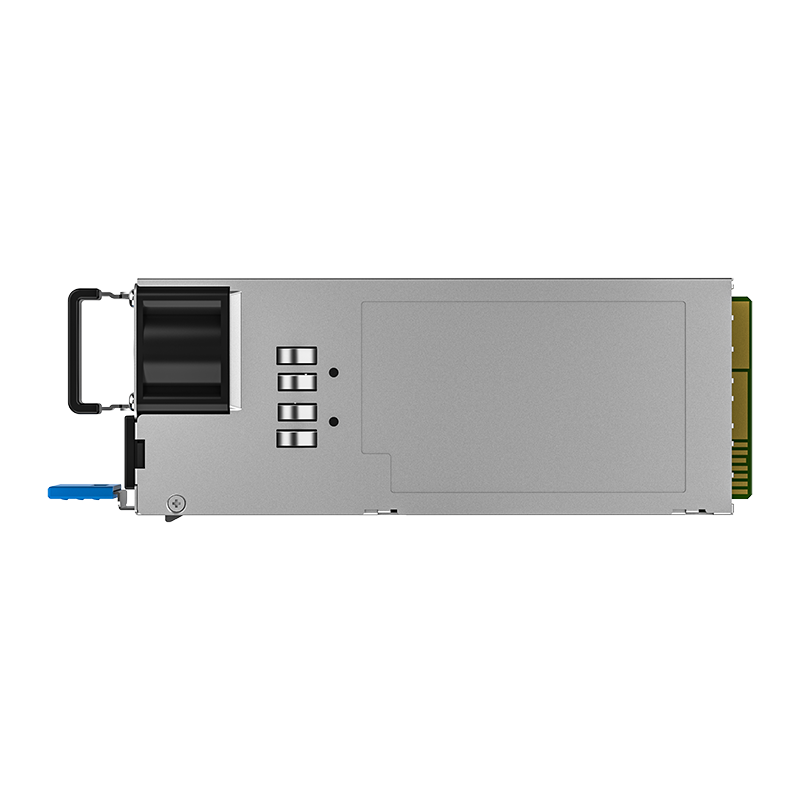

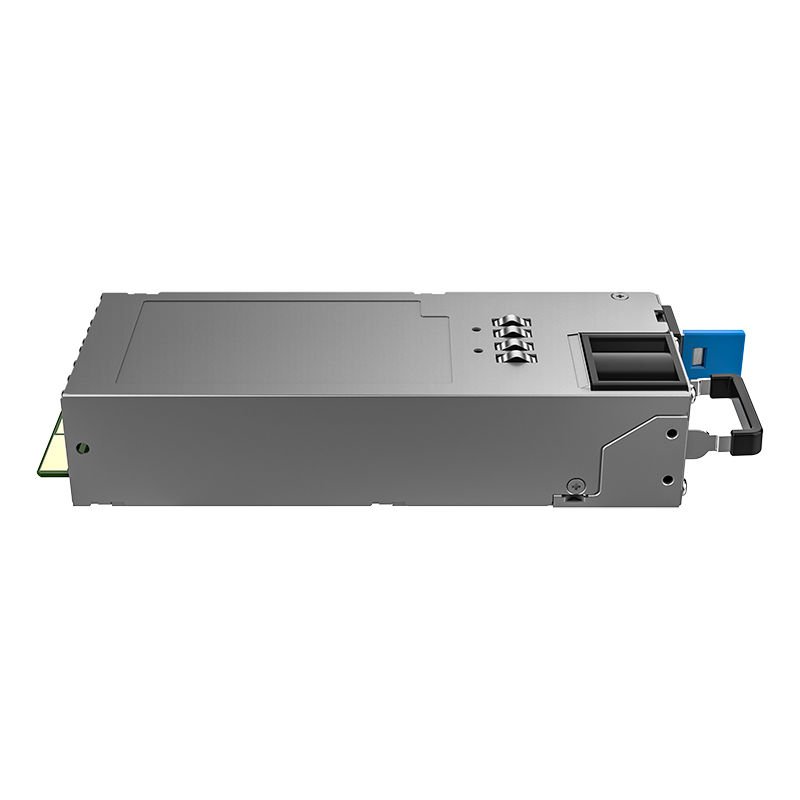

CRPS550N2

规格

输入电压（v）	90VAC-264VAC or 180VDC-320VDC
输出功率（W）	550W
外形尺寸(mm) 长宽高	18573.540
风向（抽风 FR/吹风 RF）	FR or RF
温度范围（℃）	0℃～55℃
安规	CCC;FCC;EAC;CE;KC;UL
效率（%）	铂金
MEI	CLASS A/B
Main	+12V/45A
Standby	+12VSB/3A

型号列表

系列标题

输入电压
（v）

输出功率
（W）

外形尺寸(mm)
长*宽*高

风向
（抽风 FR/吹风 RF）

温度范围
（℃）

安规

效率
（%）

MEI

Main

Standby

资料下载

认证标准

技术手册

CRPS

90-264VAC or 180-320VDC

250

185*73.5*40

0-55

CCC; CE; EAC; FCC; RCM; UL

金牌

Class B

+12V/20.8A

+12VSB/1A

CRPS1300N2

90VAC-264VAC or 180VDC-320VDC

1300W

185*73.5*40

FR or RF

0℃～55℃

CCC;UL;CE;FCC;80plus;KC;TUV;RCM

铂金

CLASS A

+12V/107A

+12VSB/3A

CRPS1600N3

90VAC-264VAC or 180VDC-320VDC

1600W

185*73.5*40

0℃～55℃

BSMI;CCC;CE;EAC;FCC;KC;RCM;TUV;UKCA;UL

铂金

CLASS A

+12V/65.6A +12V/131.1A

+12VSB/3A

CRPS2000N3

90VAC-264VAC or 180VDC-320VDC

2000W

185*73.5*40

0℃～55℃

CE;CQC;IRAM;TUV;UKCA;UL

铂金

CLASS A

+12V/65.6A +12V/148A +12V/164A

+12VSB/3A

CRPS2200D2

90VAC-264VAC or 180VDC-320VDC

2200W

185*73.5*40

0℃～55℃

CE;CQC;IRAM;TUV;UKCA;UL

铂金

CLASS A

+12V/91A +12V/164A +12V/181A

+12VSB/3A

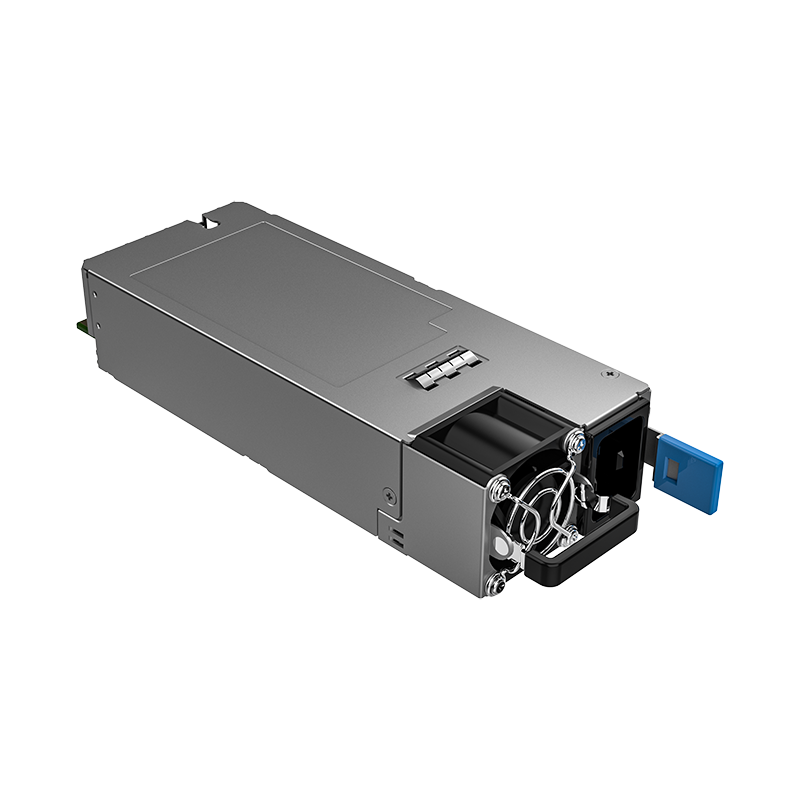

CRPS2400D2

90VAC-264VAC or 180VDC-320VDC

2400W

185*73.5*40

0℃～55℃

CE;CQC;IRAM;TUV;UKCA;UL

铂金

CLASS A

+12V/91A +12V/181A +12V/197A

+12VSB/3A

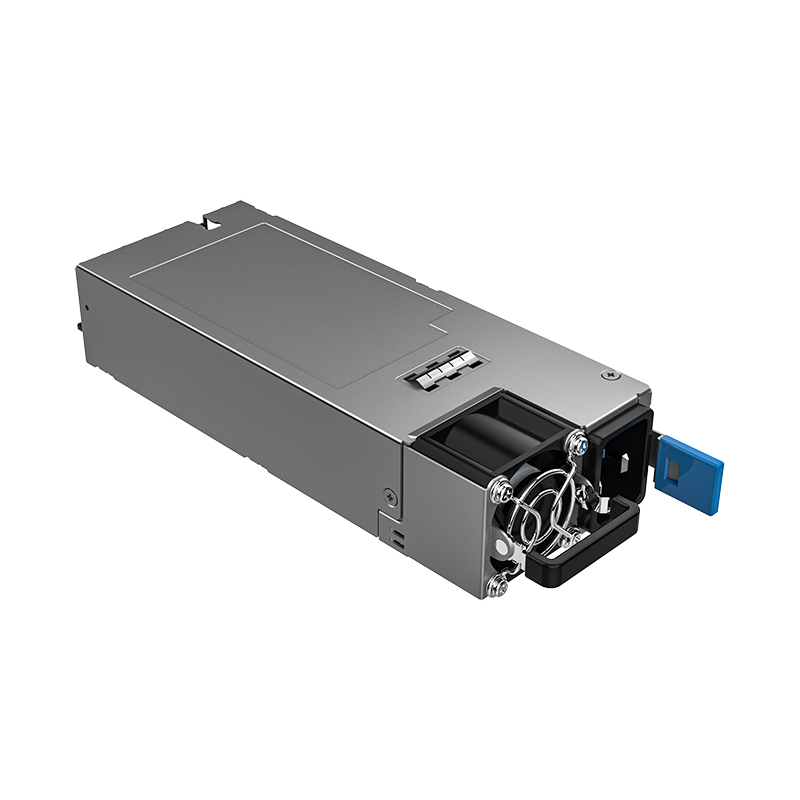

CRPS2700D2

90VAC-264VAC or 180VDC-320VDC

2700W

185*73.5*40

FR or RF

0℃～55℃

UL;CE;FCC;80plus;CQC;BSMI;KC;TUV;EAC;RCM;BIS;IRAM;Morocco;Ukraine;UKCA

铂金

CLASS A

+12V/98.4A +12V/205A +12V/221.4A

+12VSB/3A

CRPS1300C3

90VAC-264VAC or 180VDC-320VDC

1300W

185*73.5*40

0℃～55℃

CCC;UL;CE;FCC;80plus;BSMI;KC;TUV;EAC;RCM;UKCA

钛金

CLASS A

+12V/65.6A +12V/107A

+12VSB/3A

CRPS1600C3

90VAC-264VAC or 180VDC-320VDC

1600W

185*73.5*40

0℃～55℃

BSMI;CCC;CE;EAC;FCC;KC;RCM;TUV;UKCA;UL

钛金

CLASS A

+12V/65.6A +12V/131.1A

+12VSB/3A

CRPS2000C3

90VAC-264VAC or 180VDC-320VDC

2000W

185*73.5*40

0℃～55℃

UL;CE;FCC;80plus;CQC;BSMI;KC;TUV;EAC;RCM;BIS;UKCA

钛金

CLASS A

+12V/65.6A +12V/148A +12V/164A

+12VSB/3A

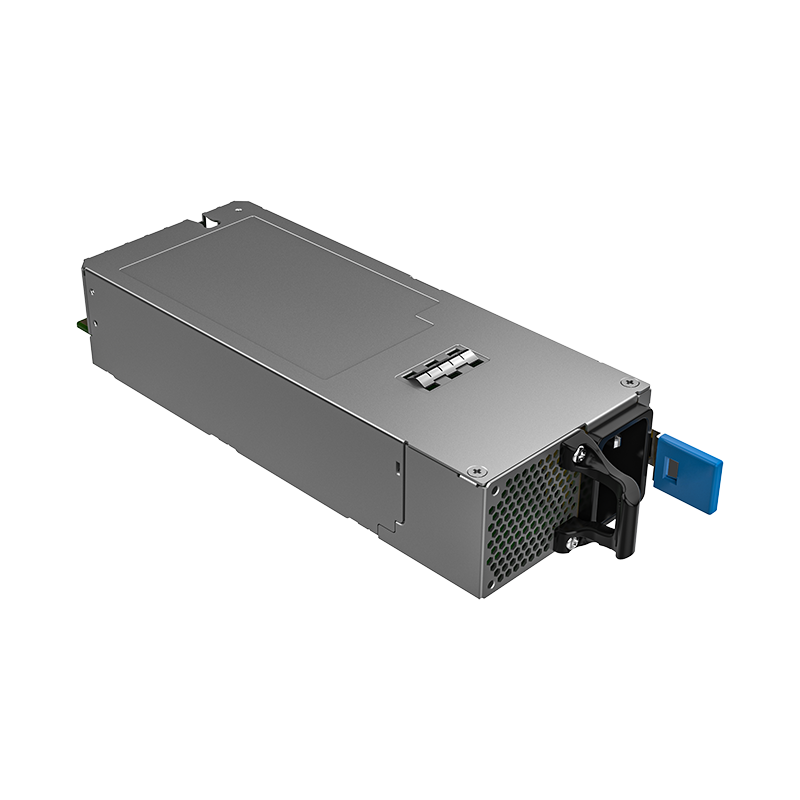

CRPS2700T2

90VAC-264VAC or 180VDC-320VDC

2700W

185*73.5*40

0℃～55℃

80plus;BIS;BSMI;CE;CQC;EAC;FCC;IRAM;KC; RCM;TUV;UKCA; UL

钛金

CLASS A

+12V/98.4A +12V/205A +12V/221.4A

+12VSB/3A

CRPS3200T2

90VAC-264VAC or 180VDC-320VDC

3200W

185*73.5*40

0℃～55℃

BSMI;CE;CQC;CUL;FCC;IRAM;KC;RCM;TUV;UKCA

钛金

CLASS A

+12V/98.4A +12V/229.5A +12V/245.9A +12V/262.3A

+12VSB/3A

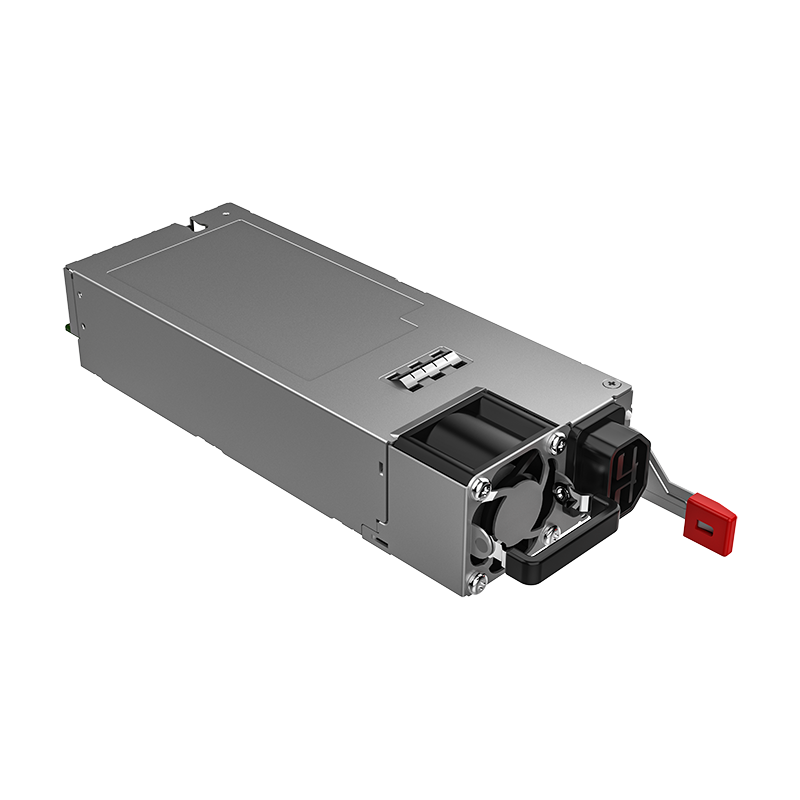

CRPS3600T2

90VAC-264VAC or 180VDC-320VDC

3600W

185*73.5*40

0℃～55℃

BSMI;CE;CQC;CUL;FCC;IRAM;KC;RCM;TUV;UKCA

钛金

CLASS A

+12V/98.4A +12V/229.6A +12V/295A

+12VSB/3A

CRPS2700TS5

90VAC-264VAC or 180VDC-320VDC

2700W

185*73.5*40

0℃～55℃

80plus;BIS;BSMI;CE;CQC;EAC;FCC;IRAM;KC; TUV;UKCA;UL

钛金

CLASS A

+54V/24.1A +54V/50A

+12VSB/2A

CRPS3200TS5

90VAC-264VAC or 180VDC-320VDC

3200W

185*73.5*40

0℃～55℃

80plus; BIS; BSMI; CB; CE; CQC; EAC; FCC; IRAM; KC; TUV; UL

钛金

CLASS A

+54V/24A +54V/48.2A +54V/54A +54V/59.3A

+12VSB/2A

CRPSHD800D2

90-264VAC or 180VDC-400VDC

800W

185*73.5*40

0℃～55℃

CCC

铂金

CLASS A

+12V/65A

+12VSB/3A

CRPSHD1300D2

90-264VAC or 180VDC-400VDC

1300W

185*73.5*40

0℃～55℃

CCC

铂金

CLASS A

+12V/75A +12V/82A +12V/107A

+12VSB/3A

CRPSHD1600D2

90-264VAC or 180VDC-400VDC

1600W

185*73.5*40

0℃～55℃

CCC

铂金

CLASS A

+12V/75A +12V/82A +12V/132A

+12VSB/3A

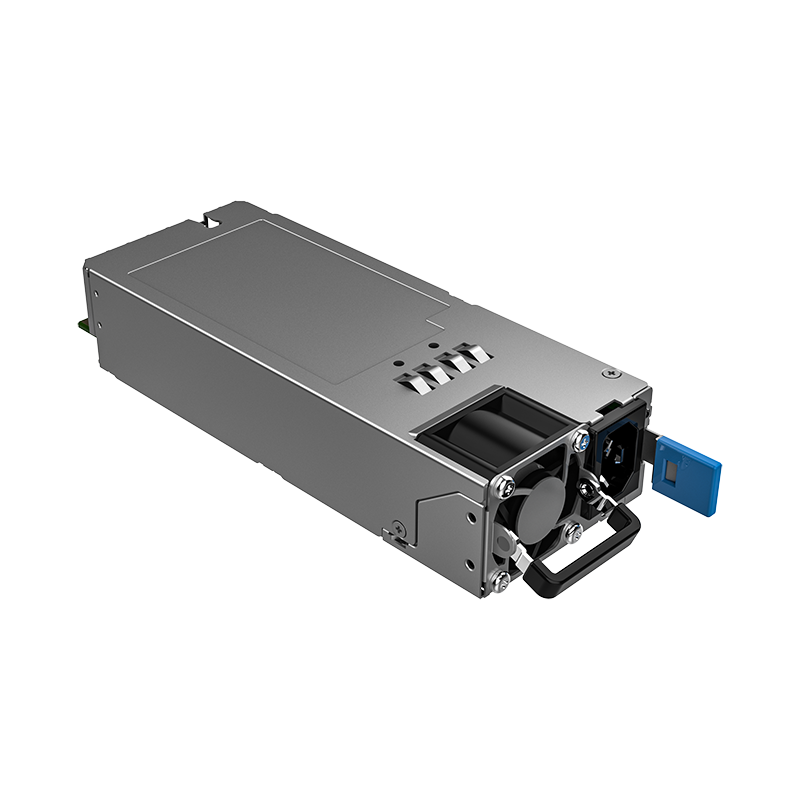

CRPSHD2000D2

90-264VAC or 180VDC-400VDC

2000W

185*73.5*40

0℃～55℃

CCC

铂金

CLASS A

+12V/82A +12V/148A +12V/164A

+12VSB/3A

CRPSLD550B

-40VDC - -72VDC

550W

185*73.5*40

FR or RF

0℃～60℃

CCC;CE

铂金

CLASS B

+12V/45A

+12VSB/3A

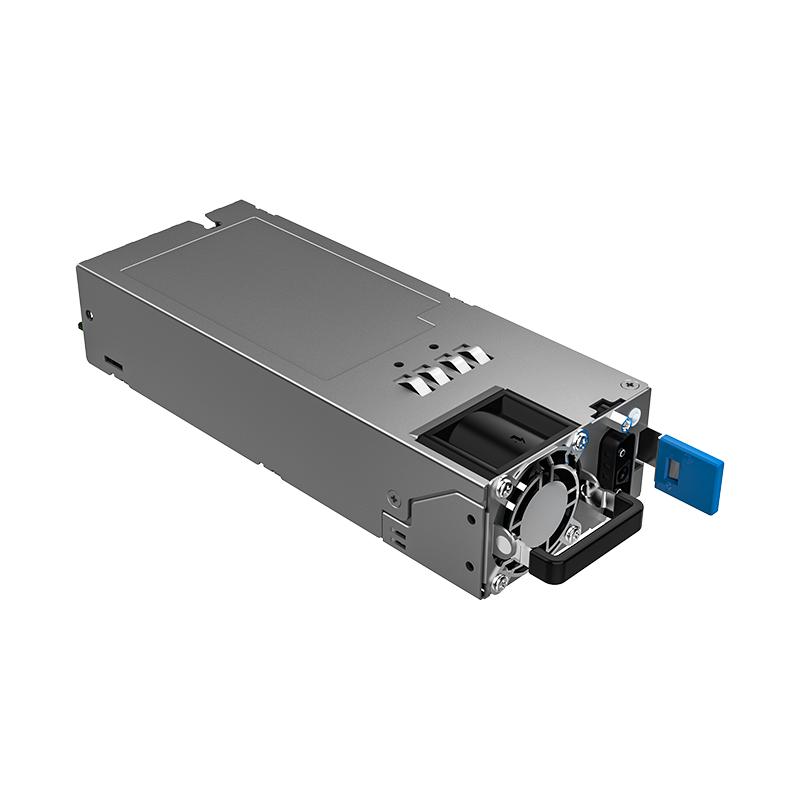

CRPSD800D2

-40VDC - -72VDC

800W

185*73.5*40

FR or RF

0℃～55℃

BIS;CCC;CE;EAC;KC;TUV;UL

铂金

CLASS A

+12V/67A

+12VSB/3A

CRPSD1300

-40VDC - -72VDC

1300W

185*73.5*40

FR or RF

0℃～50℃

CCC;UL;CE;FCC;KC;TUV;EAC;BIS

铂金

CLASS A

+12V/106A

+12VSB/3A

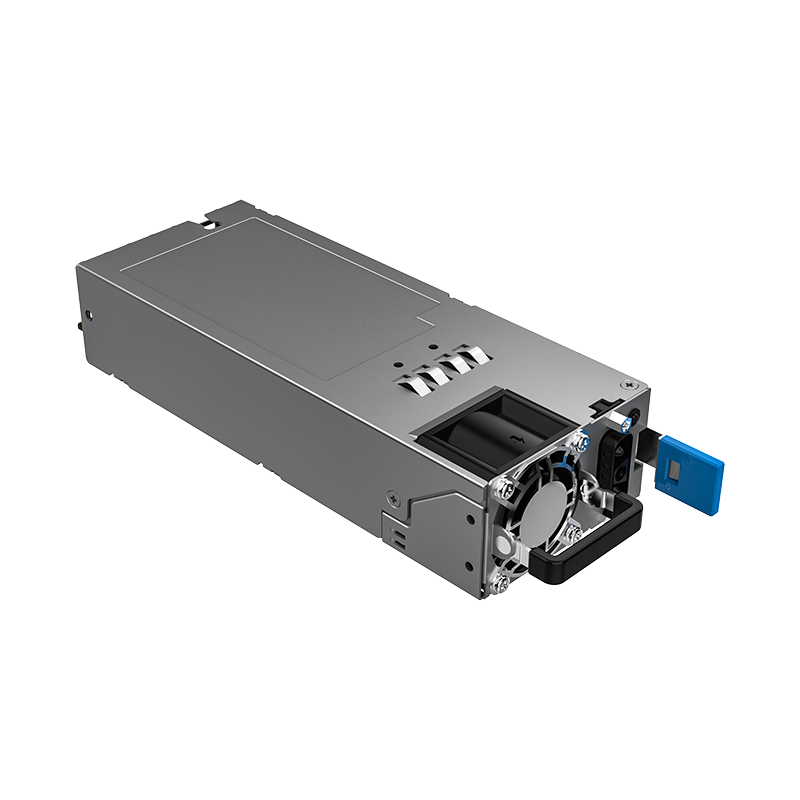

CRPSLD2000D2

-40VDC - -72VDC

2000W

185*73.5*40

0℃～50℃

CCC;CE

铂金

CLASS A

+12V/161A

+12VSB/3A

CRPS2200CLM

2200W

265*73.5*40

0℃～55℃

UL;CE;FCC;80plus;CQC;TUV;EAC;UKCA

铂金

CLASS A

+12V/90.2A +12V/180.4A

+12VSB/3A

CRPS3000CLM

3000W

265*73.5*40

0℃～55℃

UL;CE;FCC;80plus;CQC;TUV;EAC;UKCA

铂金

CLASS A

+12V/100A +12V/217A +12V/234A +12V/250A

+12VSB/3A

CRPS3000CL5M

3000W

265*73.5*40

0℃～55℃

CE;CQC;EAC;FCC;IRAM;TUV;UKCA;UL

铂金

CLASS A

+54V/23A +54V/45.6A +54V/50A

+12VSB/2A

CRPS3500CL5M

3500W

265*73.5*40

0℃～55℃

CQC;80plus

铂金

CLASS A

+54V/24.1A +54V/48.2A +54V/53.8A +54V/64.82A

+12VSB/2A

CRPS2200CL

2200W

265*73.5*40

0℃～55℃

80plus;CE;CQC;EAC;FCC;TUV; UKCA;UL

钛金

CLASS A

+12V/92A +12V/184A

+12VSB/3A

CRPS3000CL

3000W

265*73.5*40

0℃～55℃

BIS;BSMI;CE;CQC;EAC;FCC;KC;TUV;UKCA;UL

钛金

CLASS A

+12V/99A +12V/214A +12V/230A +12V/246A

+12VSB/3A

CRPS3000CL5

3000

265*73.5*40

0℃～55℃

BIS;CE;CQC;EAC;FCC;IRAM;KC;TUV;UKCA;UL

钛金

CLASS A

+54V/23A +54V/45.6A +54V/50A +54V/55A

+12VSB/2A

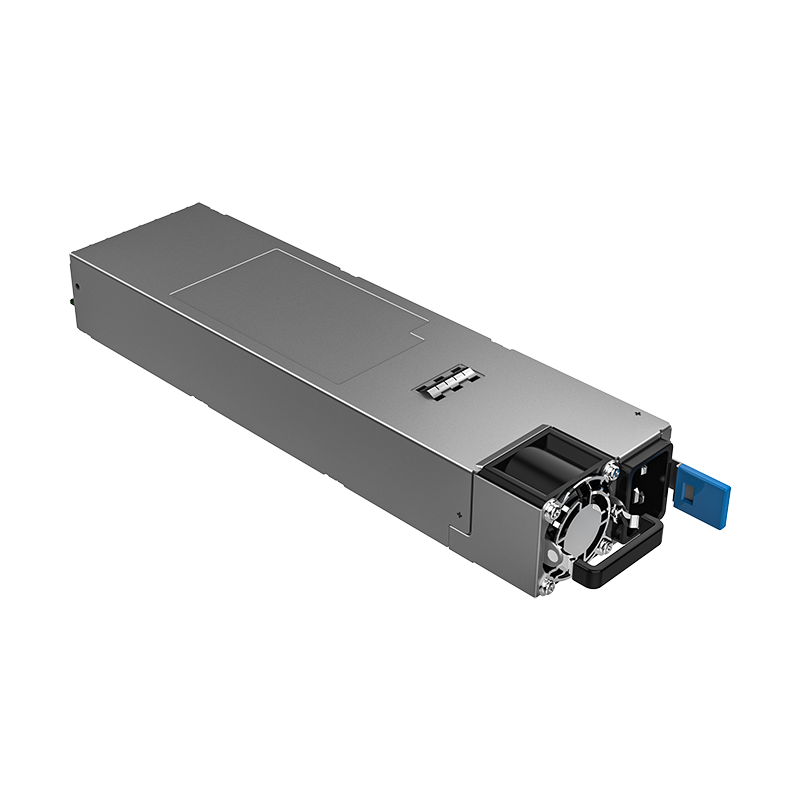

CRPS3200CL5

3200W

265*73.5*40

0℃～55℃

80plus;BIS;CE;CQC;EAC;FCC; IRAM;KC;TUV;UKCA;UL

钛金

CLASS A

+54V/24.1A +54V/48.2A +54V/53.8A +54V/59.3A

+12VSB/2A

CRPS550N2

90VAC-264VAC or 180VDC-320VDC

550W

185*73.5*40

FR or RF

0℃～55℃

CCC;FCC;EAC;CE;KC;UL

铂金

CLASS A/B

+12V/45A

+12VSB/3A

CRPS800N2

90VAC-264VAC or 180VDC-320VDC

800W

185*73.5*40

FR or RF

0℃～55℃

80plus;BIS;BSMI;CCC;CE;EAC;KC;UL

铂金

CLASS A

+12V/65A

+12VSB/3A
