DR Series

DR系列

DRS/DRN金属壳
DRM系列
塑胶外壳20-100W
DRH系列
15~150W 步阶型导轨电源
点击展开更多
点击收起
产品选型
点击展开条件搜索框
点击收起条件搜索框
系列标题
电网类型
不限
AC/DC
交流输入
不限
85-264VAC
85-264Vac
90-264Vac
85-277Vac
直流输入
不限
120-370Vdc
127-370Vdc
180--390Vdc
120--370Vdc
输出电压(V)
不限
48
12
15
5
24
36
输出电流(A)
不限
1.67
10
11
16
1.34
0.63
1
2
3
4
5
1.25
3.2
1.5
8
3.4
1.6
1.7
7.5
20
9.5
4.33
3.25
0.75
0.32
6.25
0.85
11.3
2.1
2.4
4.2
2.5
4.5
6.3
1,6
40
6.5
输出功率(W)
不限
192
150
135.6
156
90
50
96
54
12
15
480
240
120
100.8
960
60
142.5
20
75.6
24
132
153.6
155.88
30
40.8
36
76.8
32.5
40
15.4
15.3
97.5
PFC
不限
/
APFC
输入输出接口
不限
/
工作温度(°C)
不限
-30℃～+70℃
-40℃～+85℃
安规认证
不限
CE/CCC
CE/CCC/CB/UL
CE/CQC/CB
CE/CQC
CE/CQC/CB/UL
主电路架构
不限
/
效率%
不限
88
90.1
89
90.5
89.7
89.5
90
91
92
93
94
87.5
85.8
85.5
85.6
79.8
94.5
92.5
91.5
91.2
88.5
76
86.5
78
80
81
82
95.2
91.7
83
93.5
84
85
86
95.6
87
外形尺寸（命名）
宽x高x深
不限
70x92.21x58.4mm
40x90x100mm
22.5x90x100mm
125x130x140.7mm
32x132.2x123.4mm
105x91.83x58.4mm
35x92.21x58.4mm
55x131.2x140.7mm
41x132.2x123.4mm
52.5x92.67x58.4mm
39x92.21x58.4mm
55x90x100mm
17.5x90x58.4mm
备注
不限
塑胶壳导轨
金属外壳导轨
塑壳导轨
塑胶外壳导轨
筛选型号个数：共 64 个，请查看下方表格
系列标题 电网类型 交流输入 直流输入 输出电压(V) 输出电流(A) 输出功率(W) 输入输出接口 工作温度(°C) 安规认证 主电路架构 效率% 外形尺寸（命名）
宽x高x深		 备注 资料下载 认证/标准 技术手册
DRS/DRN金属壳
DRS/DRN金属壳
-
-
-

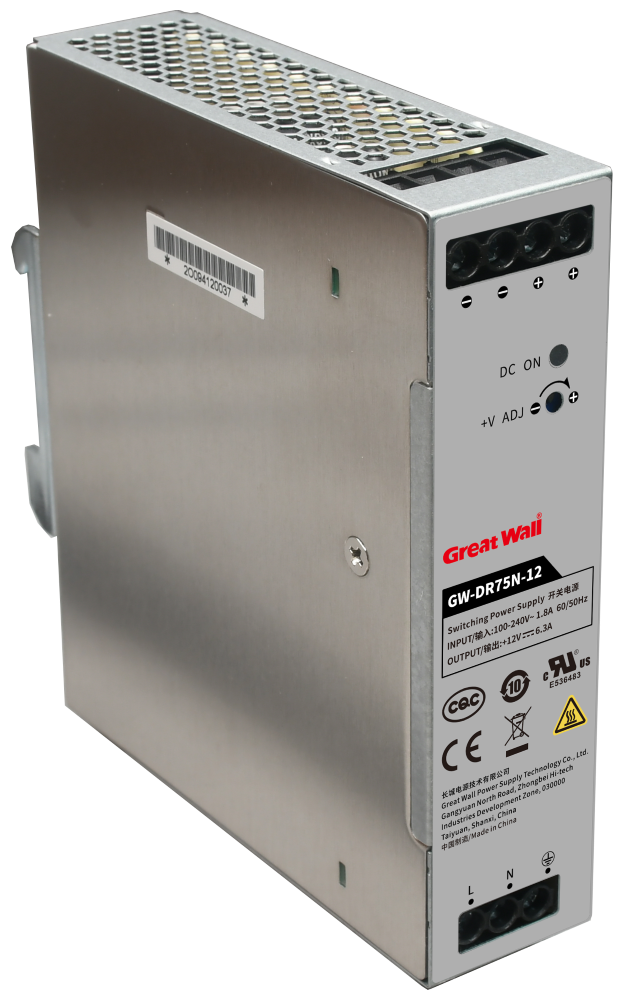

GW-DR75N-12
GW-DR75N-12
 AC/DC 85-264Vac 120-370Vdc 12 6.3 75.6 / -30℃～+70℃ CE/CQC/CB/UL / 85.6 32x132.2x123.4mm 金属外壳导轨

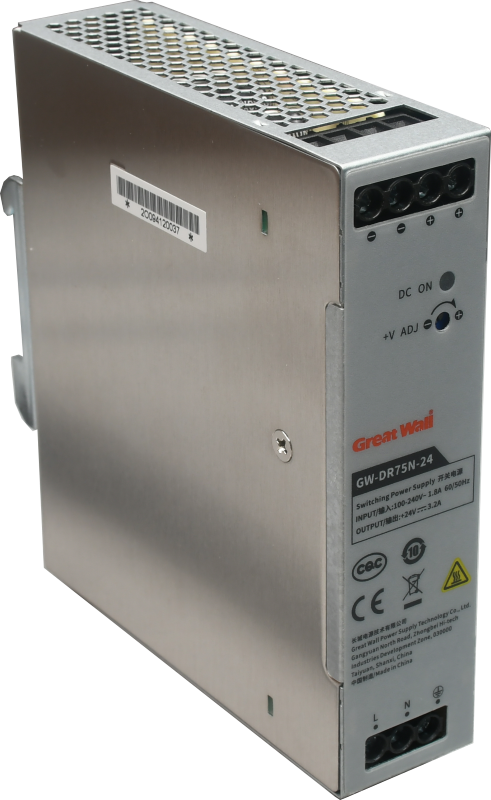

GW-DR75N-24
GW-DR75N-24
 AC/DC 85-264Vac 120-370Vdc 24 3.2 76.8 / -30℃～+70℃ CE/CQC/CB/UL / 88.5 32x132.2x123.4mm 金属外壳导轨

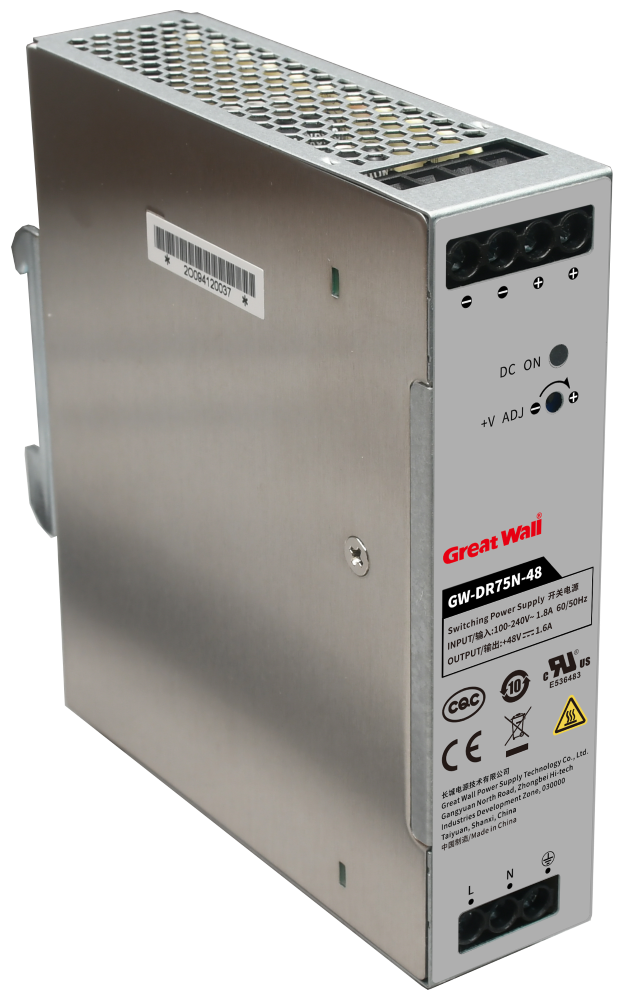

GW-DR75N-48
GW-DR75N-48
 AC/DC 85-264Vac 120-370Vdc 48 1.6 76.8 / -30℃～+70℃ CE/CQC/CB/UL / 89.5 32x132.2x123.4mm 金属外壳导轨

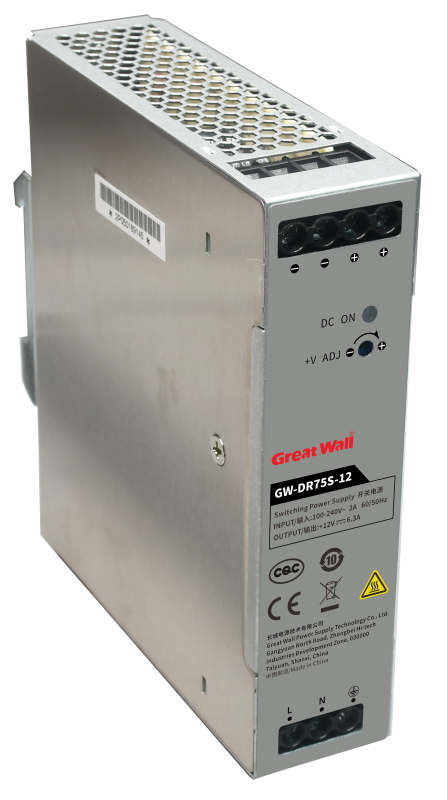

GW-DR75S-12
GW-DR75S-12
 AC/DC 85-264Vac 120-370Vdc 12 6.3 75.6 / -30℃～+70℃ CE/CQC/CB/UL / 86.5 32x132.2x123.4mm 金属外壳导轨

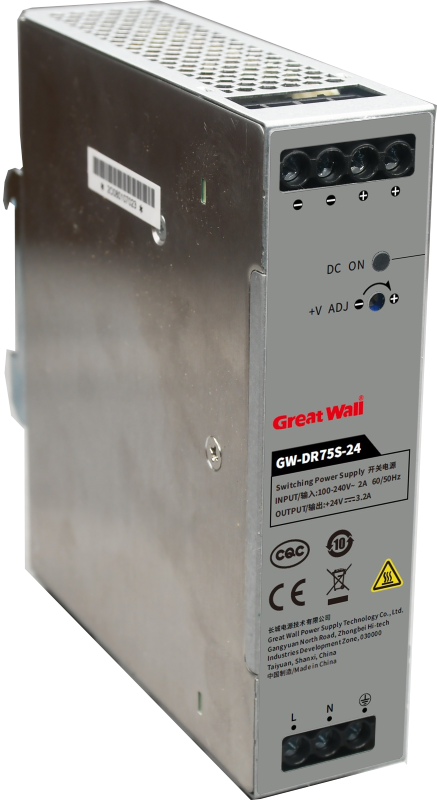

GW-DR75S-24
GW-DR75S-24
 AC/DC 85-264Vac 120-370Vdc 24 3.2 76.8 / -30℃～+70℃ CE/CQC/CB/UL / 89 32x132.2x123.4mm 金属外壳导轨

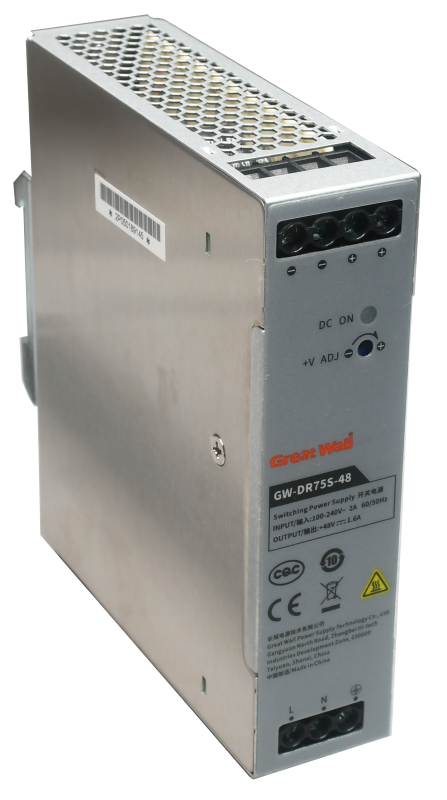

GW-DR75S-48
GW-DR75S-48
 AC/DC 85-264Vac 120-370Vdc 48 1,6 76.8 / -30℃～+70℃ CE/CQC/CB/UL / 91 32x132.2x123.4mm 金属外壳导轨

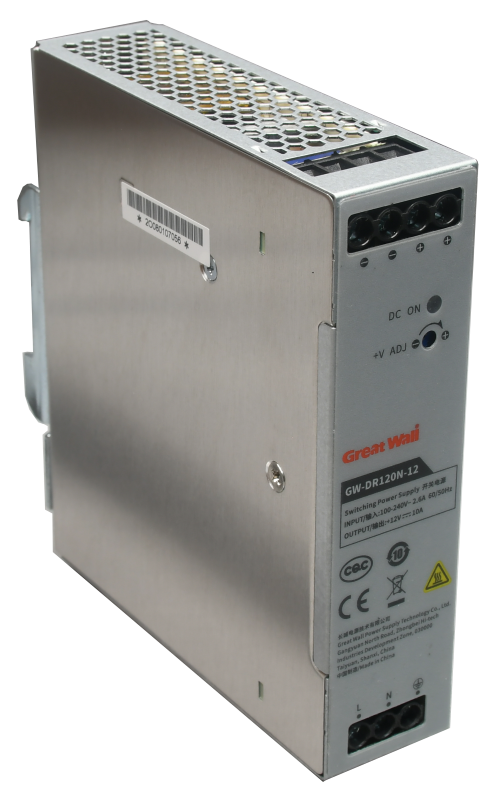

GW-DR120N-12
GW-DR120N-12
 AC/DC 85-264Vac 120-370Vdc 12 10 120 / -30℃～+70℃ CE/CQC/CB/UL / 86.5 32x132.2x123.4mm 金属外壳导轨

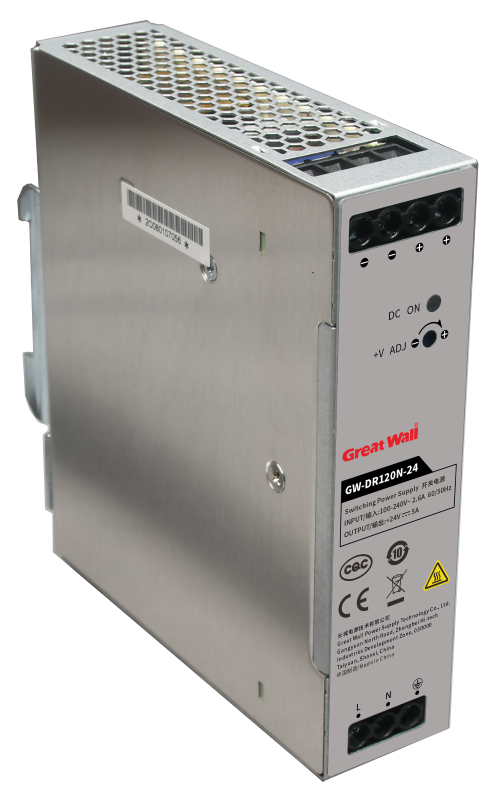

GW-DR120N-24
GW-DR120N-24
 AC/DC 85-264Vac 120-370Vdc 24 5 120 / -30℃～+70℃ CE/CQC/CB/UL / 88.5 32x132.2x123.4mm 金属外壳导轨

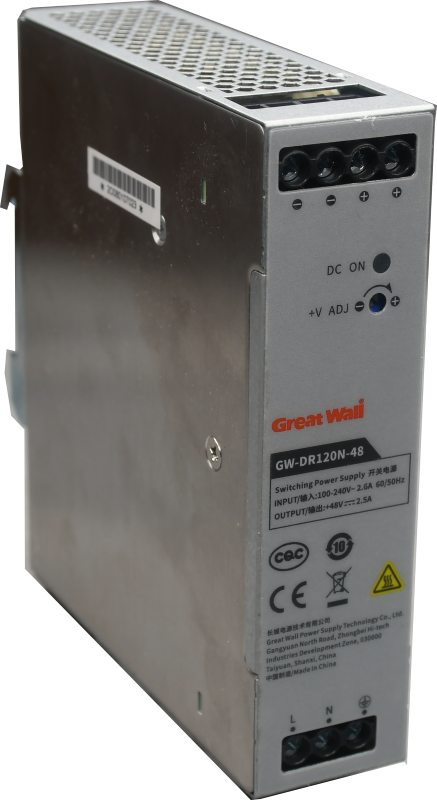

GW-DR120N-48
GW-DR120N-48
 AC/DC 85-264Vac 120-370Vdc 48 2.5 120 / -30℃～+70℃ CE/CQC/CB/UL / 90 32x132.2x123.4mm 金属外壳导轨

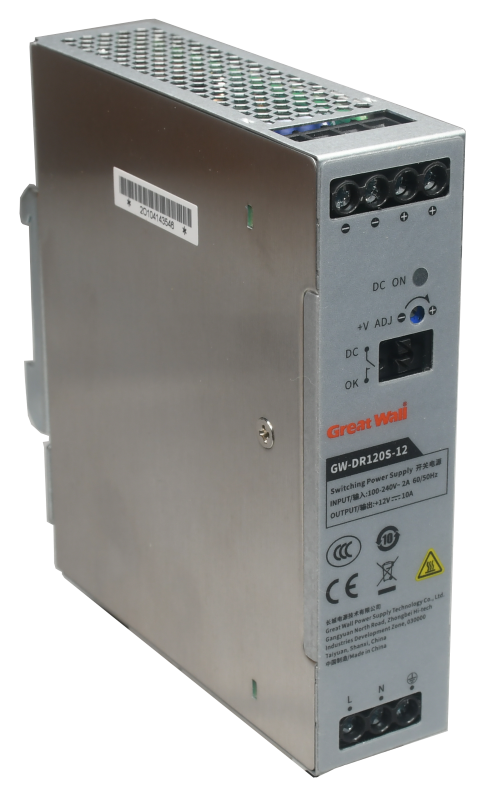

GW-DR120S-12
GW-DR120S-12
 AC/DC 90-264Vac 127-370Vdc 12 10 120 / -30℃～+70℃ CE/CCC/CB/UL / 92.5 32x132.2x123.4mm 金属外壳导轨

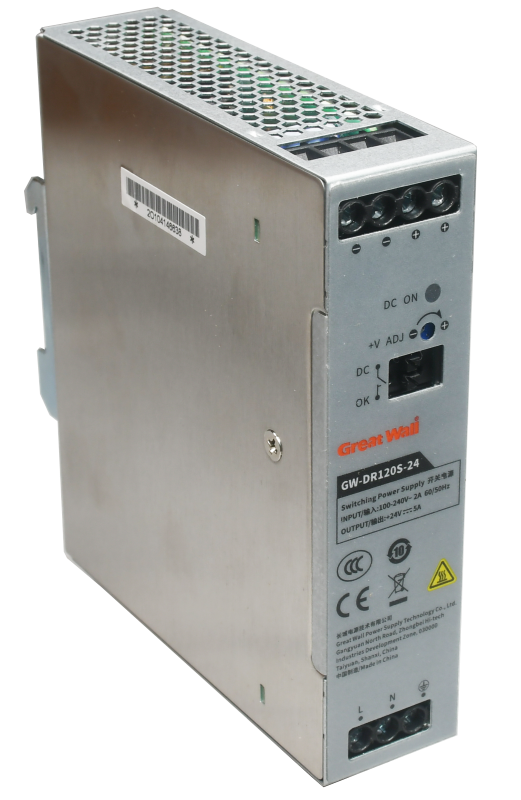

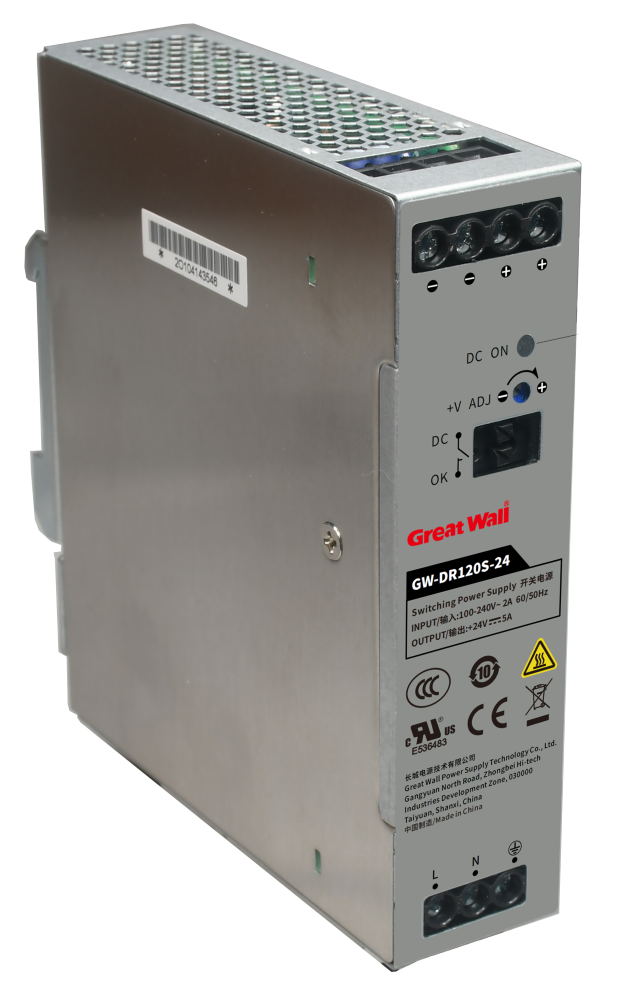

GW-DR120S-24
GW-DR120S-24
 AC/DC 90-264Vac 127-370Vdc 24 5 120 / -30℃～+70℃ CE/CCC/CB/UL / 94 32x132.2x123.4mm 金属外壳导轨

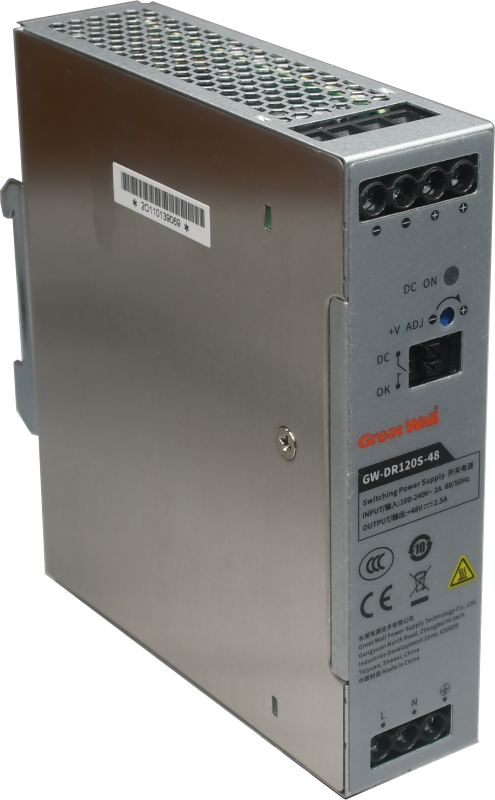

GW-DR120S-48
GW-DR120S-48
 AC/DC 90-264Vac 127-370Vdc 48 2.5 120 / -30℃～+70℃ CE/CCC/CB/UL / 93.5 32x132.2x123.4mm 金属外壳导轨
GW-DR150N-12
GW-DR150N-12
 AC/DC 85-264Vac 120-370Vdc 12 11 132 / -30℃～+70℃ CE/CQC / 89 32x132.2x123.4mm 金属外壳导轨

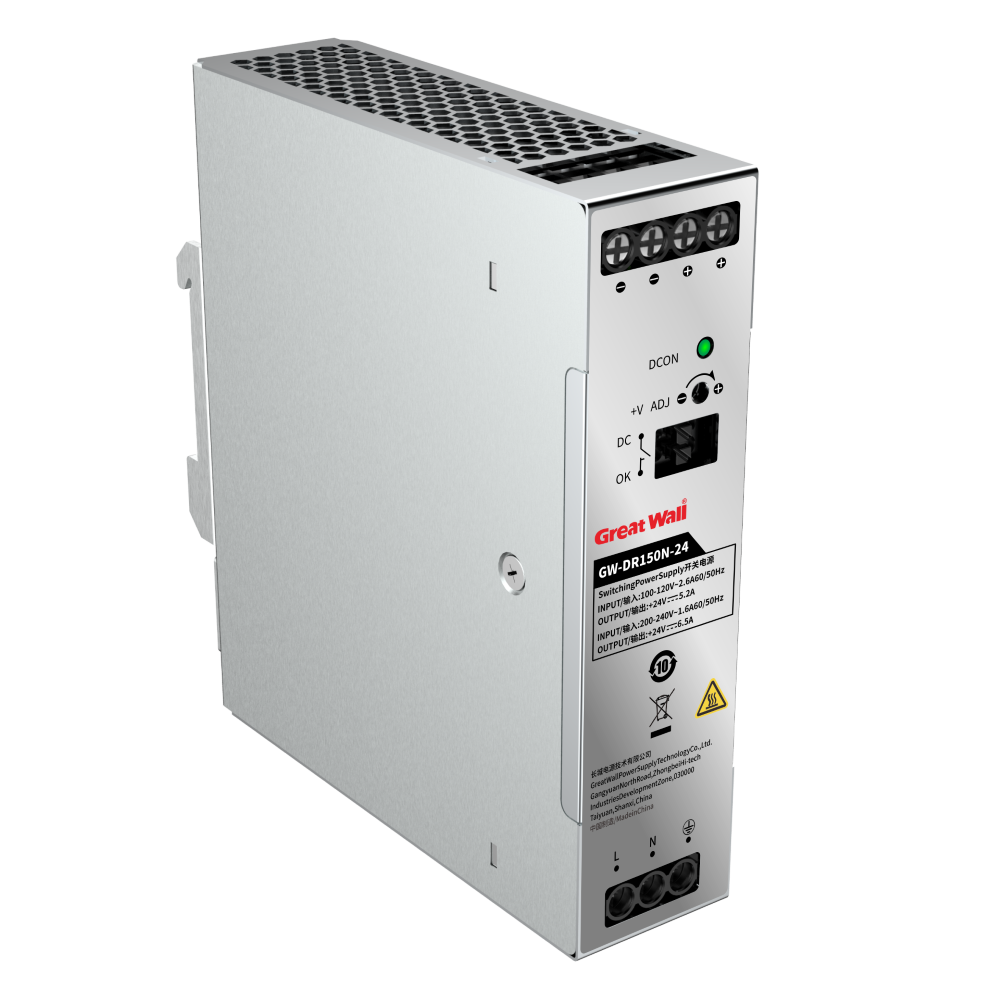

GW-DR150N-24
GW-DR150N-24
 AC/DC 85-264Vac 120-370Vdc 24 6.5 156 / -30℃～+70℃ CE/CQC / 91 32x132.2x123.4mm 金属外壳导轨
GW-DR150N-36
GW-DR150N-36
 AC/DC 85-264Vac 120-370Vdc 36 4.33 155.88 / -30℃～+70℃ CE/CQC / 90.5 32x132.2x123.4mm 金属外壳导轨
GW-DR150N-48
GW-DR150N-48
 AC/DC 85-264Vac 120-370Vdc 48 3.25 156 / -30℃～+70℃ CE/CQC / 91 32x132.2x123.4mm 金属外壳导轨

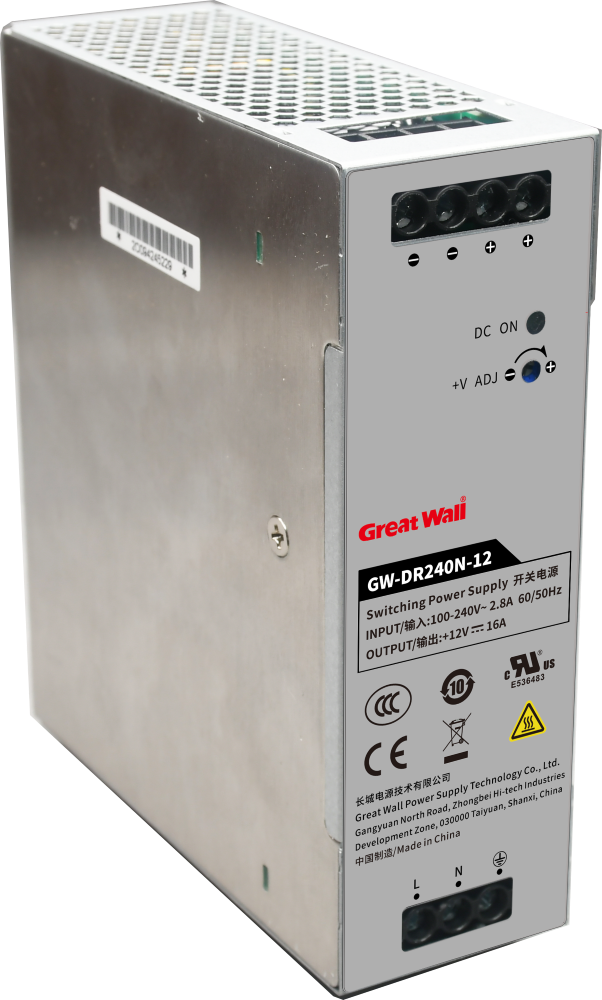

GW-DR240N-12
GW-DR240N-12
 AC/DC 85-264Vac 120--370Vdc 12 16 192 / -30℃～+70℃ CE/CCC/CB/UL / 91 41x132.2x123.4mm 金属外壳导轨

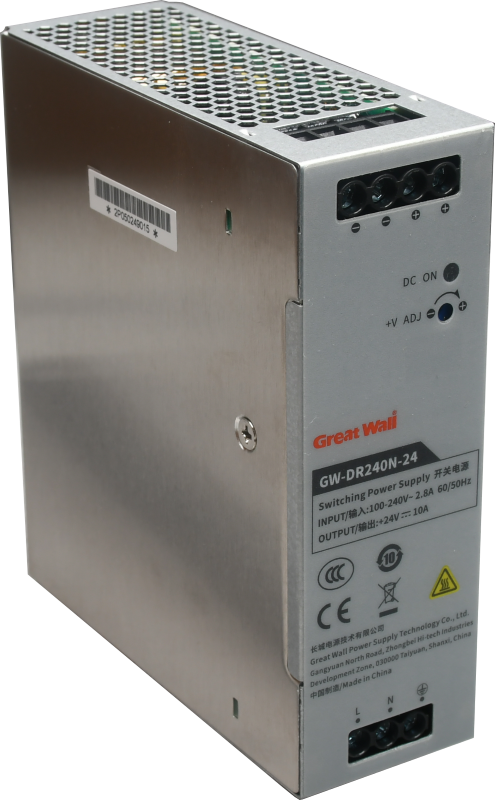

GW-DR240N-24
GW-DR240N-24
 AC/DC 85-264Vac 120--370Vdc 24 10 240 / -30℃～+70℃ CE/CCC/CB/UL / 93 41x132.2x123.4mm 金属外壳导轨
GW-DR240N-48
GW-DR240N-48
 AC/DC 85-264Vac 120--370Vdc 48 5 240 / -30℃～+70℃ CE/CCC/CB/UL / 93 41x132.2x123.4mm 金属外壳导轨

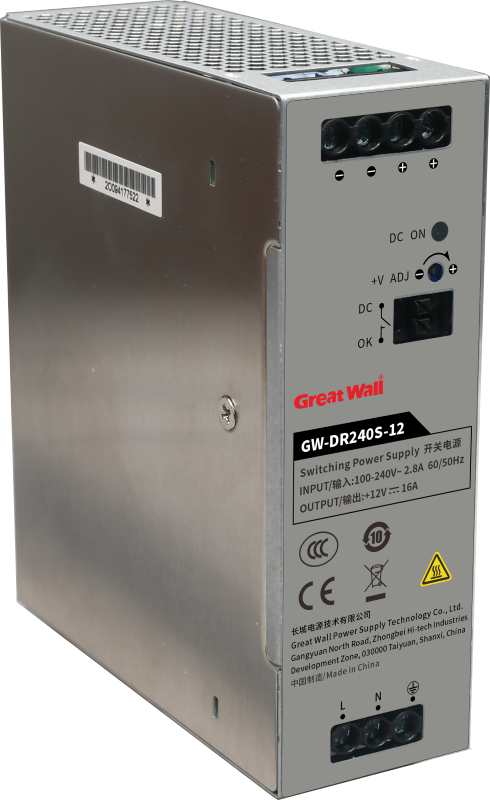

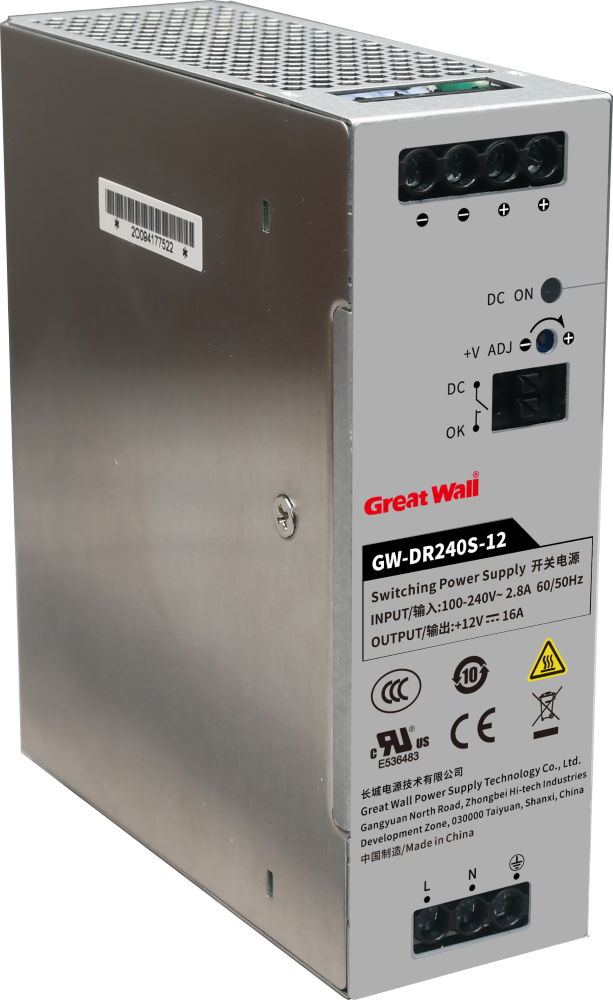

GW-DR240S-12
GW-DR240S-12
 AC/DC 90-264Vac 127-370Vdc 12 16 192 / -30℃～+70℃ CE/CCC/CB/UL / 92 41x132.2x123.4mm 金属外壳导轨

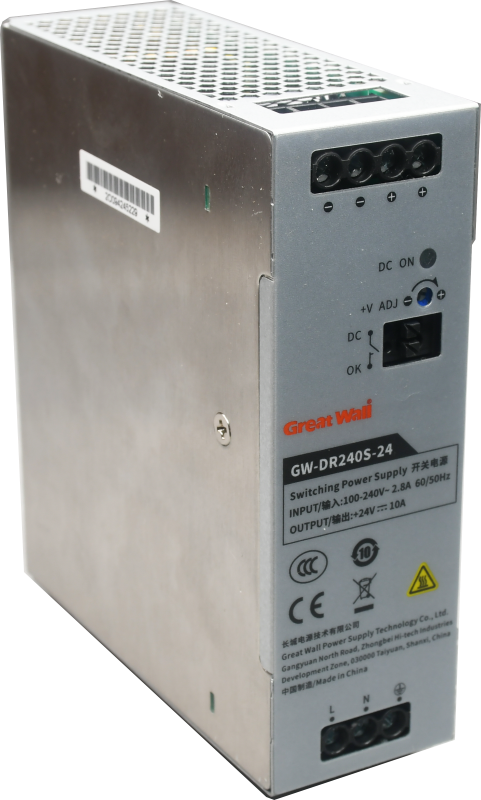

GW-DR240S-24
GW-DR240S-24
 AC/DC 90-264Vac 127-370Vdc 24 10 240 / -30℃～+70℃ CE/CCC/CB/UL / 94 41x132.2x123.4mm 金属外壳导轨

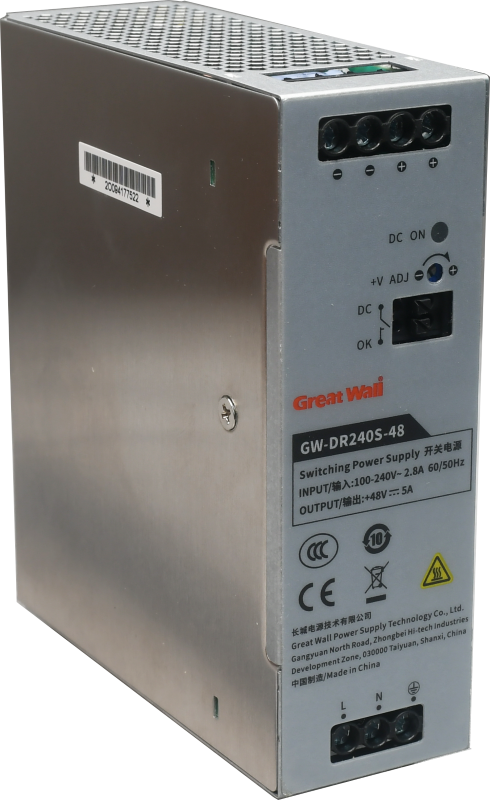

GW-DR240S-48
GW-DR240S-48
 AC/DC 90-264Vac 127-370Vdc 48 5 240 / -30℃～+70℃ CE/CCC/CB/UL / 94 41x132.2x123.4mm 金属外壳导轨

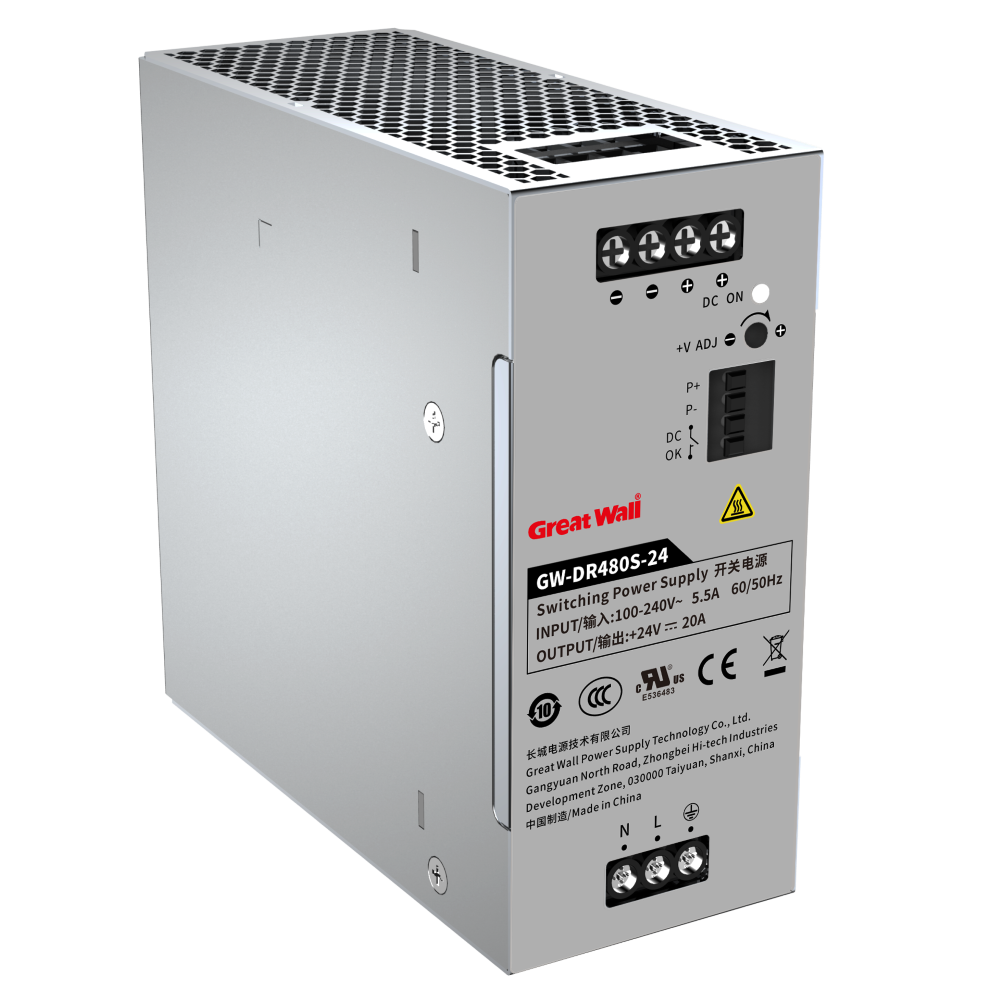

GW-DR480S-24
GW-DR480S-24
 AC/DC 90-264Vac 127-370Vdc 24 20 480 / -30℃～+70℃ CE/CCC/CB/UL / 94.5 55x131.2x140.7mm 金属外壳导轨

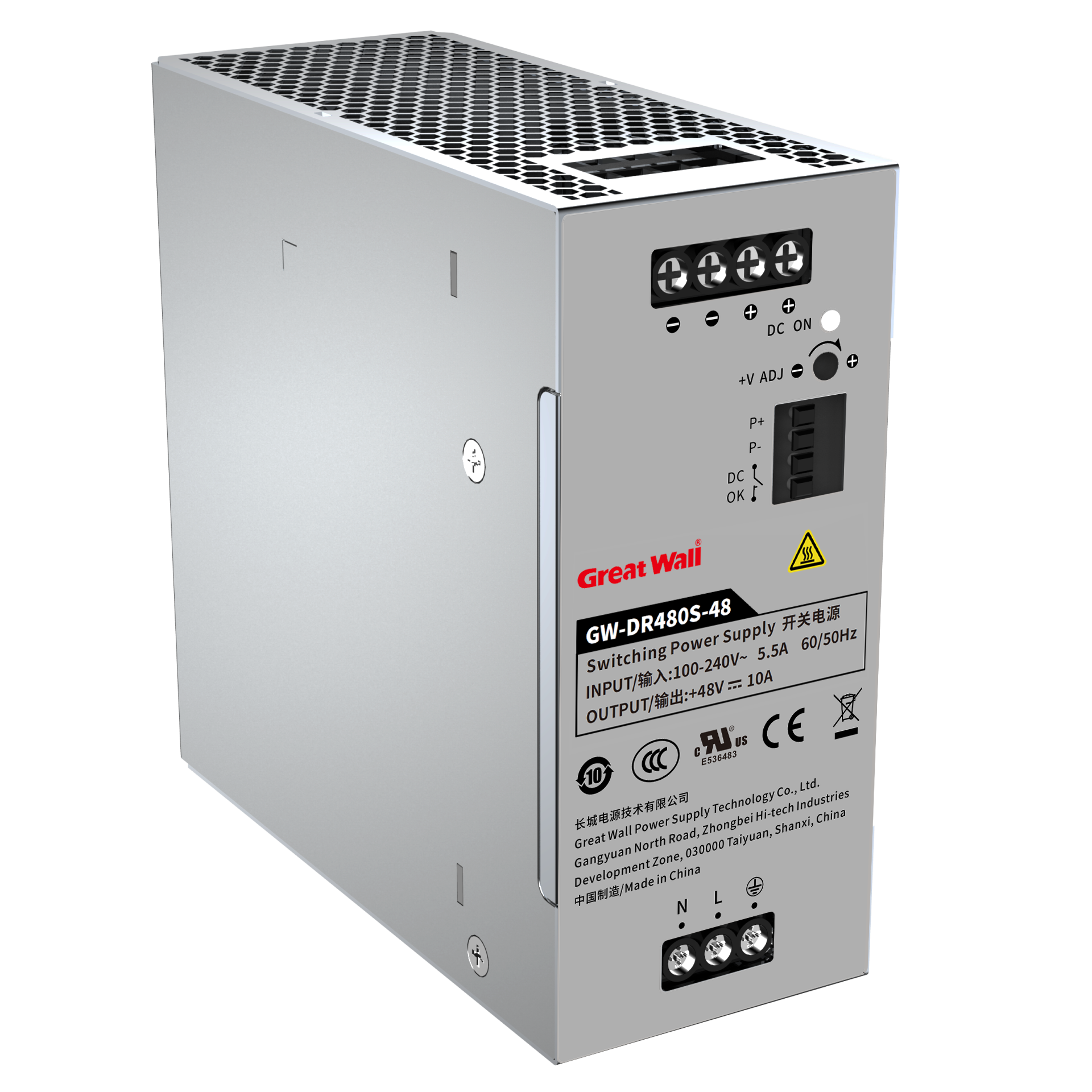

GW-DR480S-48
GW-DR480S-48
 AC/DC 90-264Vac 127-370Vdc 48 10 480 / -30℃～+70℃ CE/CCC/CB/UL / 94.5 55x131.2x140.7mm 金属外壳导轨

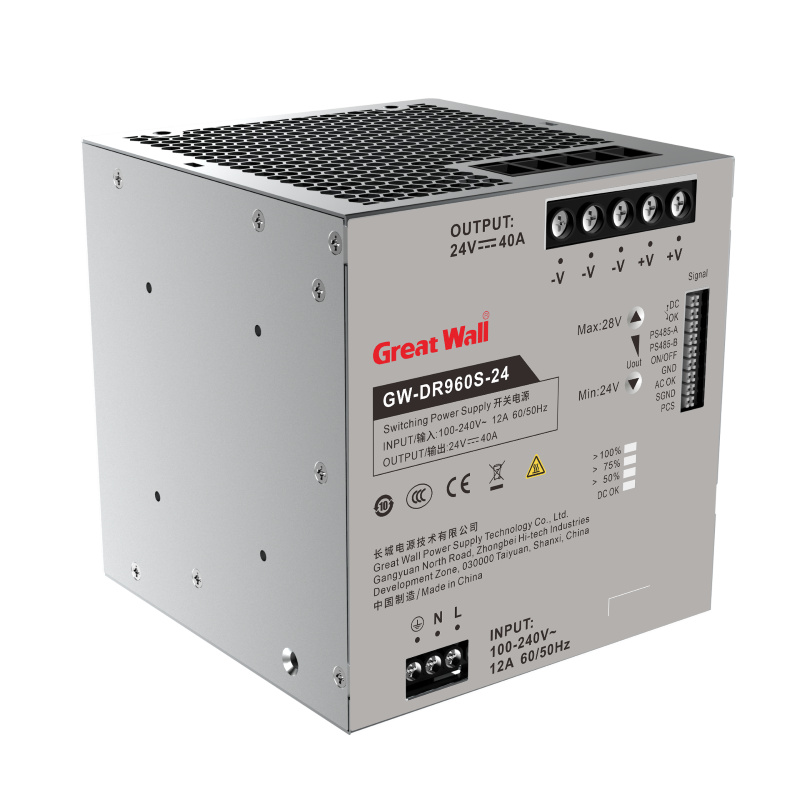

GW-DR960S-24
GW-DR960S-24
 AC/DC 85-277Vac 180--390Vdc 24 40 960 / -40℃～+85℃ CE/CCC / 95.2 125x130x140.7mm 金属外壳导轨

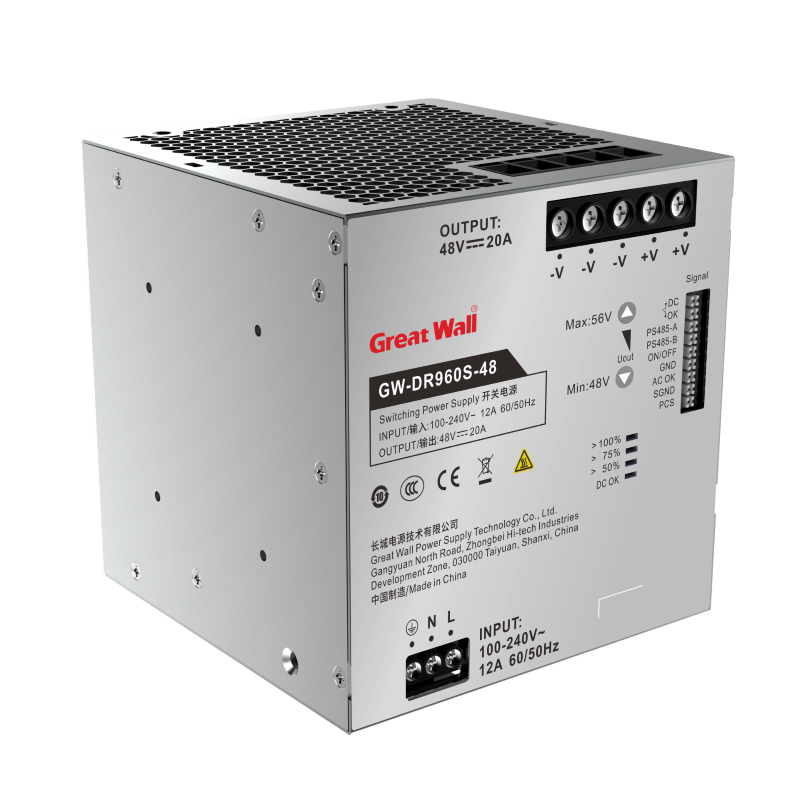

GW-DR960S-48
GW-DR960S-48
 AC/DC 85-277Vac 180--390Vdc 48 20 960 / -40℃～+85℃ CE/CCC / 95.6 125x130x140.7mm 金属外壳导轨
DRM系列
DRM系列
-
-
-
GW-DR20M-5
GW-DR20M-5
 AC/DC 85-264Vac 120-370Vdc 5 3 15 / -30℃～+70℃ CE/CQC/CB / 76 22.5x90x100mm 塑壳导轨
GW-DR20M-12
GW-DR20M-12
 AC/DC 85-264Vac 120-370Vdc 12 1.67 20 / -30℃～+70℃ CE/CQC/CB / 80 22.5x90x100mm 塑壳导轨
GW-DR20M-15
GW-DR20M-15
 AC/DC 85-264Vac 120-370Vdc 15 1.34 20 / -30℃～+70℃ CE/CQC/CB / 81 22.5x90x100mm 塑壳导轨

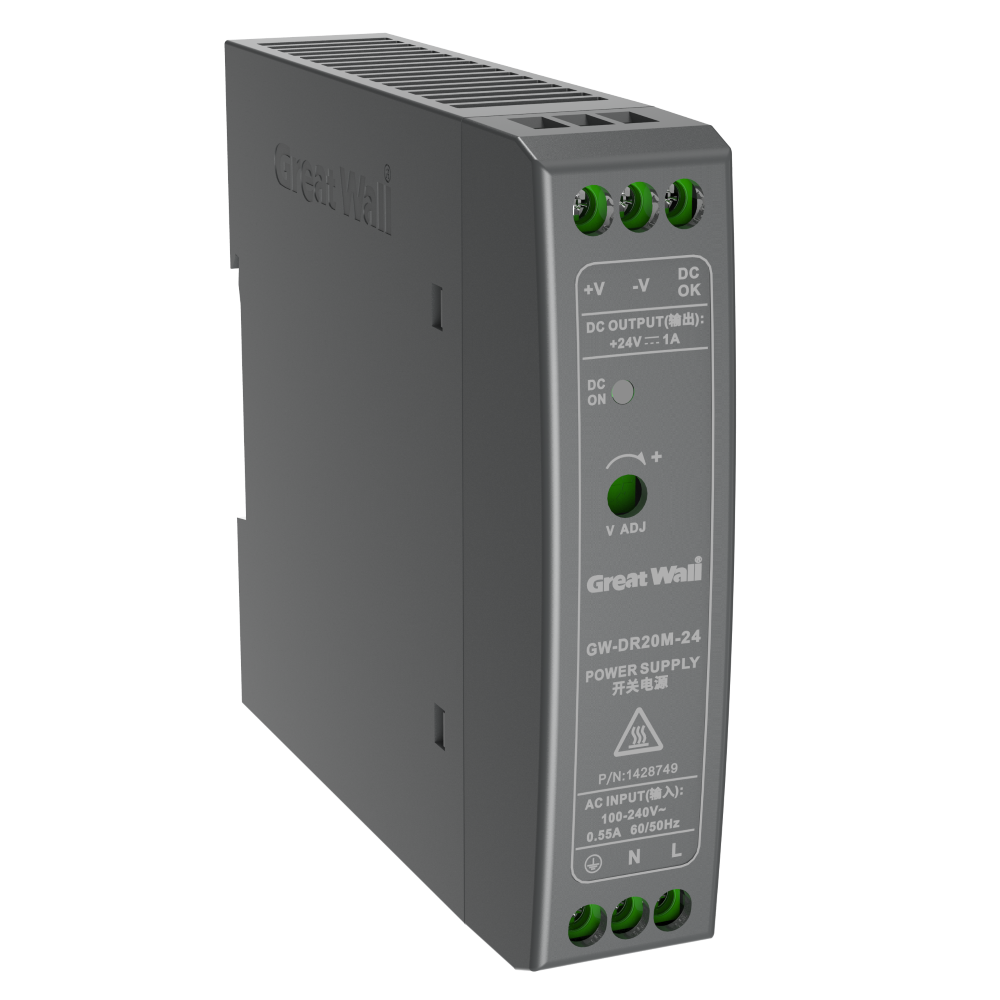

GW-DR20M-24
GW-DR20M-24
 AC/DC 85-264Vac 120-370Vdc 24 1 24 / -30℃～+70℃ CE/CQC/CB / 84 22.5x90x100mm 塑壳导轨
GW-DR40M-5
GW-DR40M-5
 AC/DC 85-264Vac 120-370Vdc 5 8 40 / -30℃～+70℃ CE/CQC/CB / 78 40x90x100mm 塑胶外壳导轨

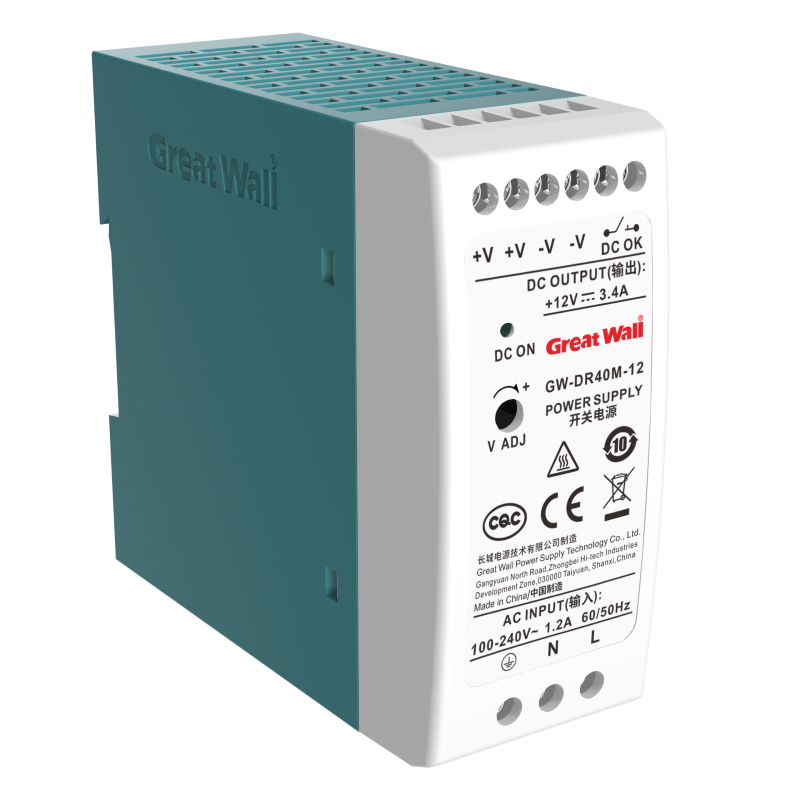

GW-DR40M-12
GW-DR40M-12
 AC/DC 85-264Vac 120-370Vdc 12 3.4 40.8 / -30℃～+70℃ CE/CQC/CB / 85 40x90x100mm 塑胶外壳导轨

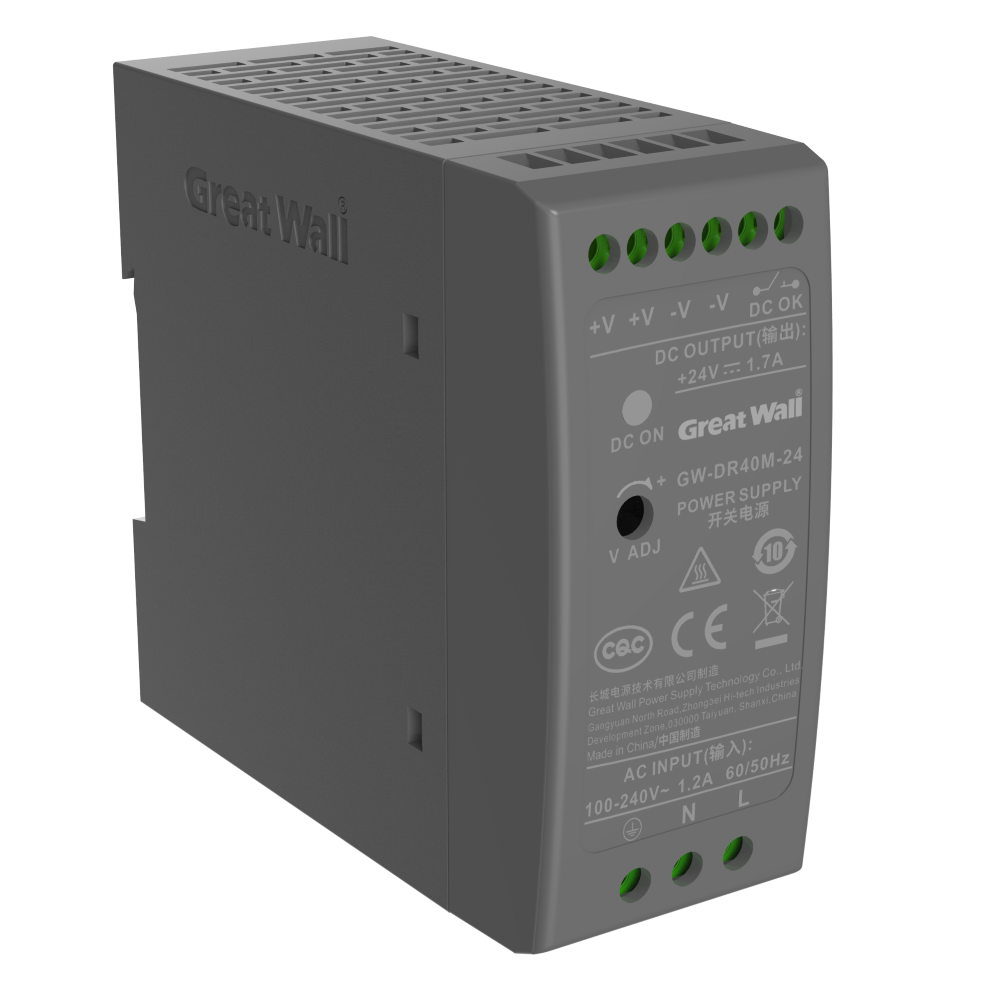

GW-DR40M-24
GW-DR40M-24
 AC/DC 85-264Vac 120-370Vdc 24 1.7 40.8 / -30℃～+70℃ CE/CQC/CB / 87.5 40x90x100mm 塑胶外壳导轨

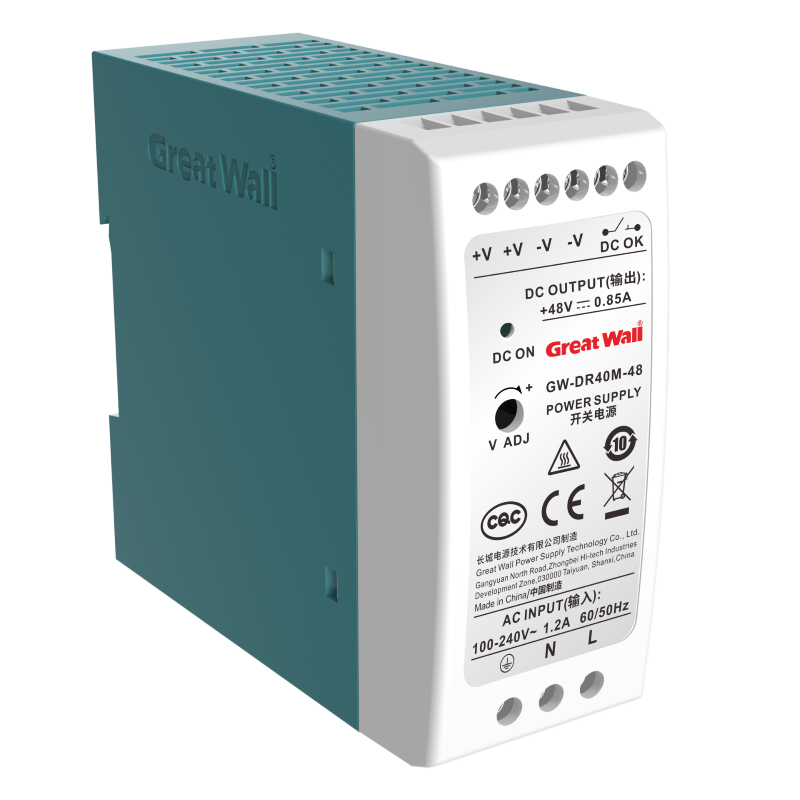

GW-DR40M-48
GW-DR40M-48
 AC/DC 85-264Vac 120-370Vdc 48 0.85 40.8 / -30℃～+70℃ CE/CQC/CB / 88 40x90x100mm 塑胶外壳导轨
GW-DR60M-5
GW-DR60M-5
 AC/DC 85-264Vac 120-370Vdc 5 10 50 / -30℃～+70℃ CE/CQC/CB / 78 40x90x100mm 塑胶外壳导轨
GW-DR60M-12
GW-DR60M-12
 AC/DC 85-264Vac 120-370Vdc 12 5 60 / -30℃～+70℃ CE/CQC/CB / 85 40x90x100mm 塑胶外壳导轨
GW-DR60M-24
GW-DR60M-24
 AC/DC 85-264Vac 120-370Vdc 24 2.5 60 / -30℃～+70℃ CE/CQC/CB / 87.5 40x90x100mm 塑胶外壳导轨
GW-DR60M-48
GW-DR60M-48
 AC/DC 85-264Vac 120-370Vdc 48 1.25 60 / -30℃～+70℃ CE/CQC/CB / 88.5 40x90x100mm 塑胶外壳导轨
GW-DR100M-12
GW-DR100M-12
 AC/DC 85-264Vac 120-370Vdc 12 7.5 90 / -30℃～+70℃ CE/CQC/CB / 83 55x90x100mm 塑壳导轨

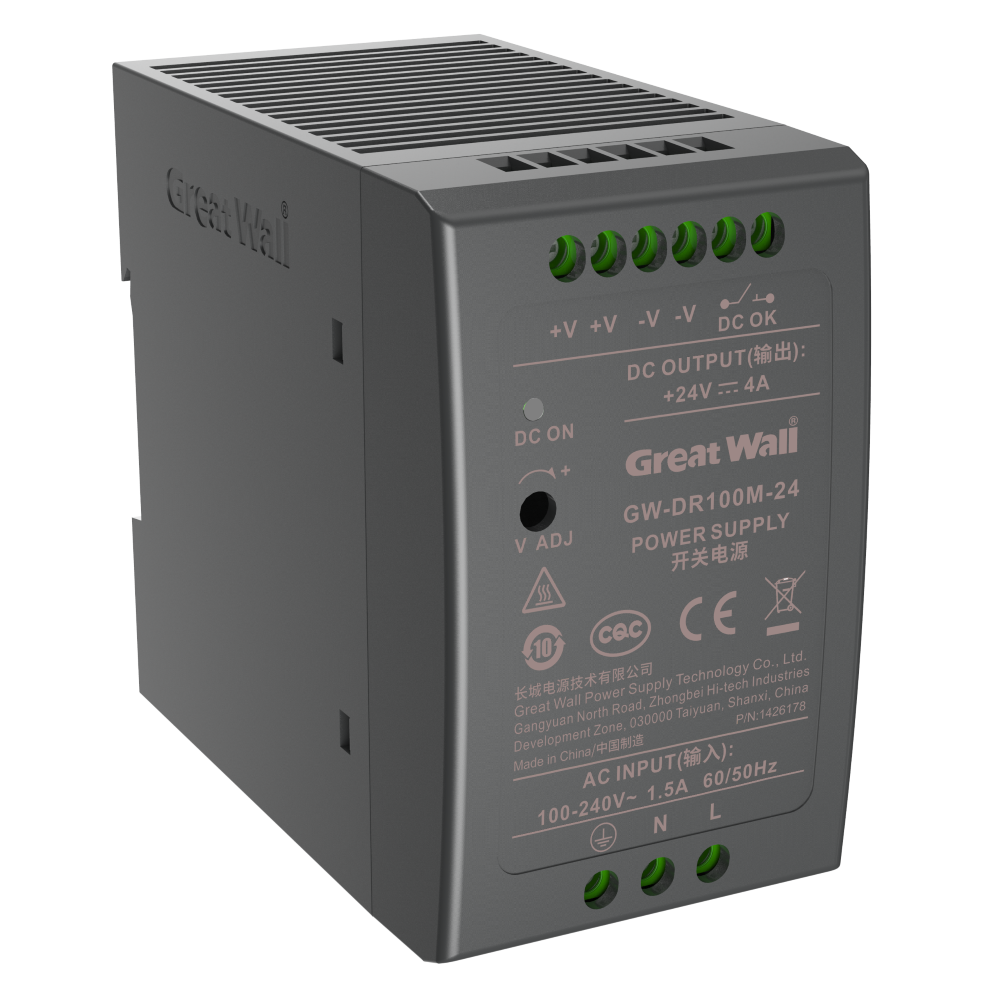

GW-DR100M-24
GW-DR100M-24
 AC/DC 85-264Vac 120-370Vdc 24 4 96 / -30℃～+70℃ CE/CQC/CB / 86 55x90x100mm 塑壳导轨
GW-DR100M-48
GW-DR100M-48
 AC/DC 85-264Vac 120-370Vdc 48 2 96 / -30℃～+70℃ CE/CQC/CB / 87 55x90x100mm 塑壳导轨
DRH系列
DRH系列
-
-
-
GW-DR15H-5
GW-DR15H-5
 AC/DC 85-264VAC 127-370Vdc 5 2.4 12 / -30℃～+70℃ CE/CQC/CB / 79.8 17.5x90x58.4mm 塑胶外壳导轨
GW-DR15H-12
GW-DR15H-12
 AC/DC 85-264VAC 127-370Vdc 12 1.25 15 / -30℃～+70℃ CE/CQC/CB / 85 17.5x90x58.4mm 塑胶外壳导轨
GW-DR15H-15
GW-DR15H-15
 AC/DC 85-264VAC 127-370Vdc 15 1 15 / -30℃～+70℃ CE/CQC/CB / 85.5 17.5x90x58.4mm 塑胶外壳导轨

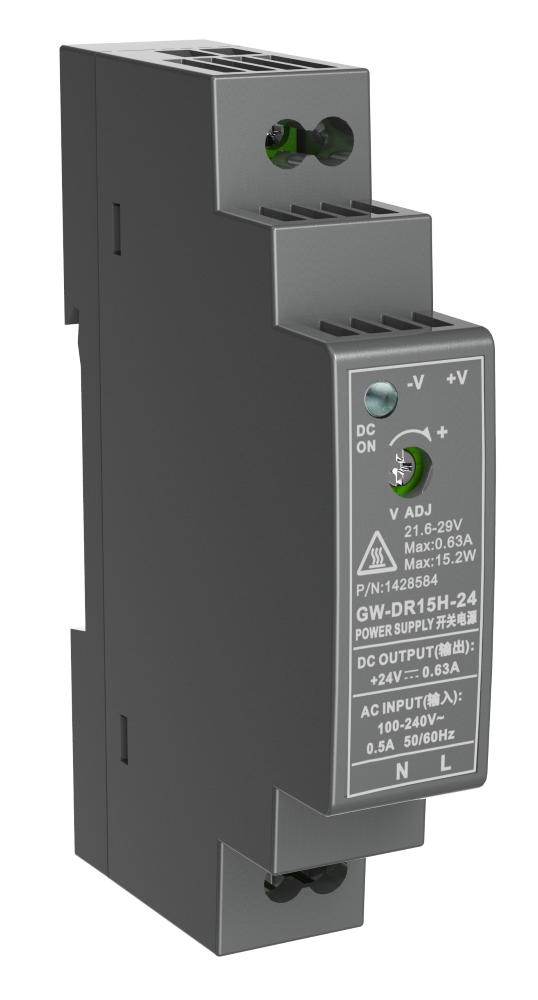

GW-DR15H-24
GW-DR15H-24
 AC/DC 85-264VAC 127-370Vdc 24 0.63 15.3 / -30℃～+70℃ CE/CQC/CB / 85.8 17.5x90x58.4mm 塑胶外壳导轨
GW-DR15H-48
GW-DR15H-48
 AC/DC 85-264VAC 127-370Vdc 48 0.32 15.4 / -30℃～+70℃ CE/CQC/CB / 87 17.5x90x58.4mm 塑胶外壳导轨

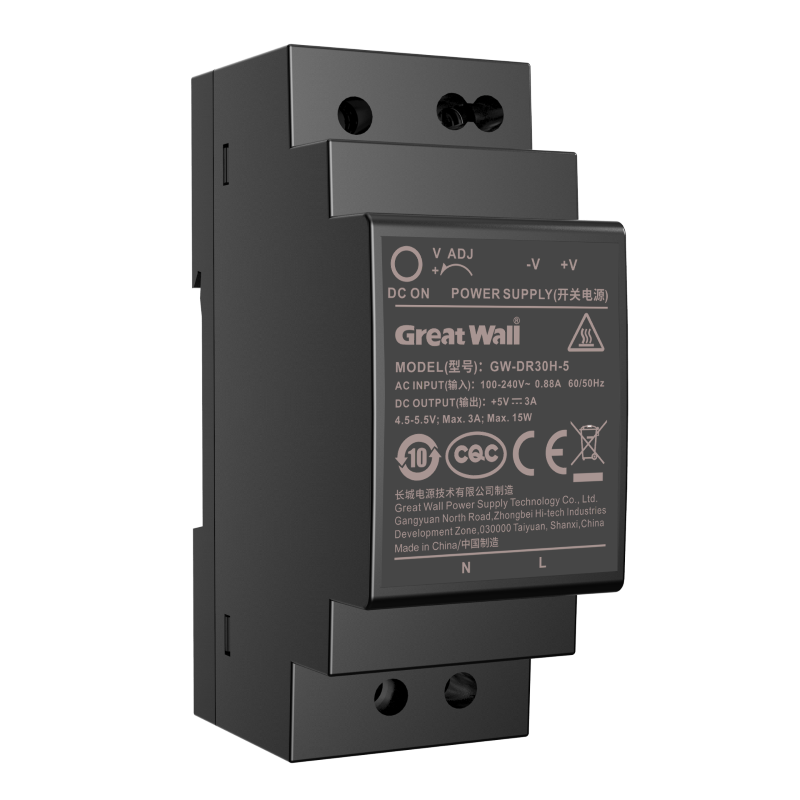

GW-DR30H-5
GW-DR30H-5
 AC/DC 85-264Vac 120-370Vdc 5 3 15 / -30℃～+70℃ CE/CQC/CB / 82 39x92.21x58.4mm 塑胶壳导轨
GW-DR30H-12
GW-DR30H-12
 AC/DC 85-264Vac 120-370Vdc 12 2 24 / -30℃～+70℃ CE/CQC/CB / 88 35x92.21x58.4mm 塑胶外壳导轨
GW-DR30H-15
GW-DR30H-15
 AC/DC 85-264Vac 120-370Vdc 15 2 30 / -30℃～+70℃ CE/CQC/CB / 89 35x92.21x58.4mm 塑胶外壳导轨

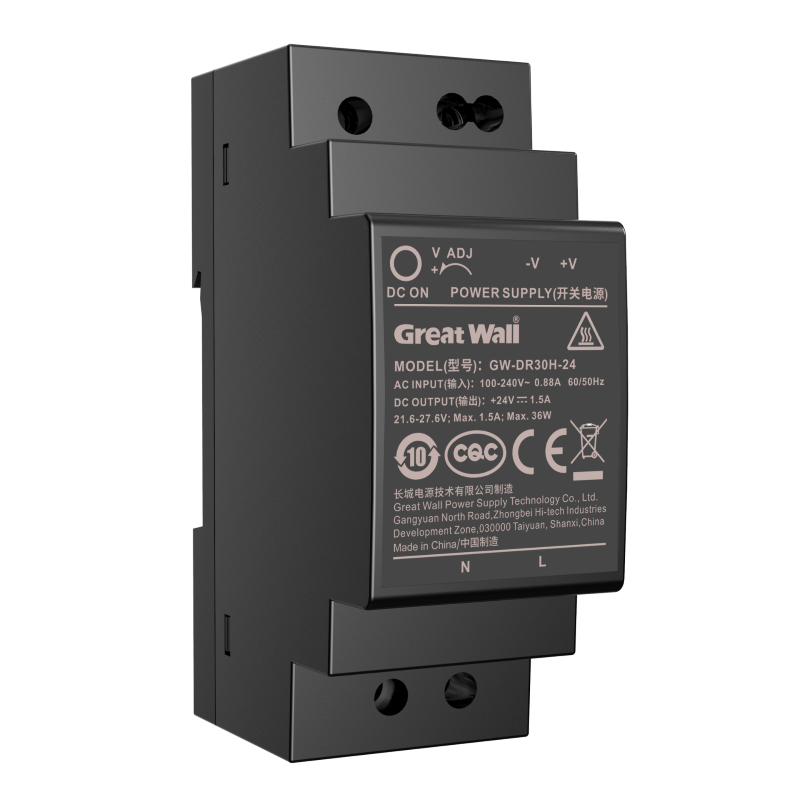

GW-DR30H-24
GW-DR30H-24
 AC/DC 85-264Vac 120-370Vdc 24 1.5 36 / -30℃～+70℃ CE/CQC/CB / 89 35x92.21x58.4mm 塑胶外壳导轨

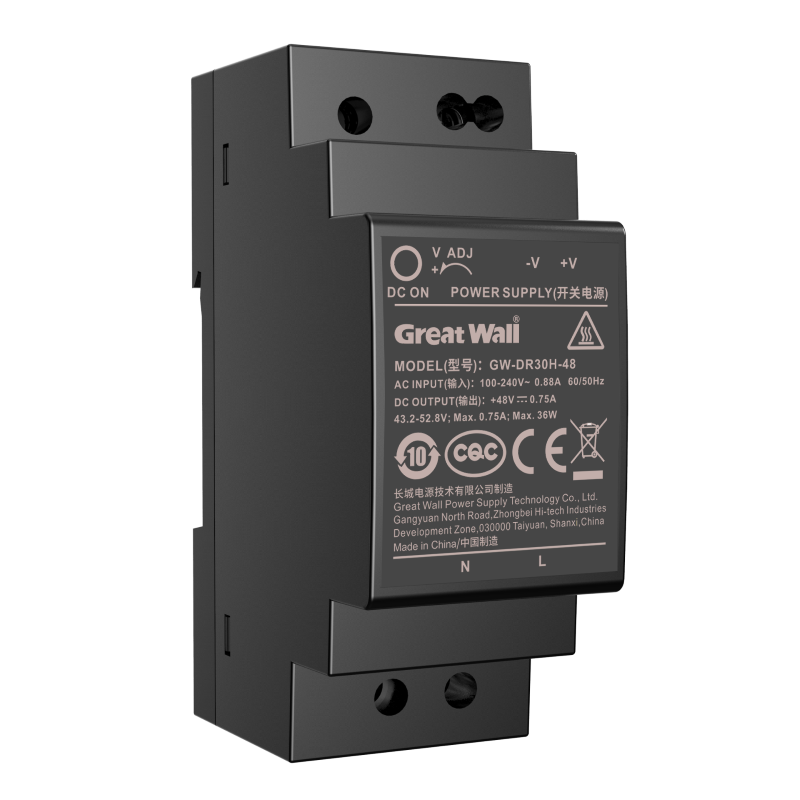

GW-DR30H-48
GW-DR30H-48
 AC/DC 85-264Vac 120-370Vdc 48 0.75 36 / -30℃～+70℃ CE/CQC/CB / 89.5 35x92.21x58.4mm 塑胶外壳导轨
GW-DR60H-5
GW-DR60H-5
 AC/DC 85-264Vac 120-370Vdc 5 6.5 32.5 / -30℃～+70℃ CE/CQC/CB / 85 52.5x92.67x58.4mm 塑胶外壳导轨
GW-DR60H-12
GW-DR60H-12
 AC/DC 85-264Vac 120-370Vdc 12 4.5 54 / -30℃～+70℃ CE/CQC/CB / 88 52.5x92.67x58.4mm 塑胶外壳导轨
GW-DR60H-15
GW-DR60H-15
 AC/DC 85-264Vac 120-370Vdc 15 4 60 / -30℃～+70℃ CE/CQC/CB / 89 52.5x92.67x58.4mm 塑胶外壳导轨

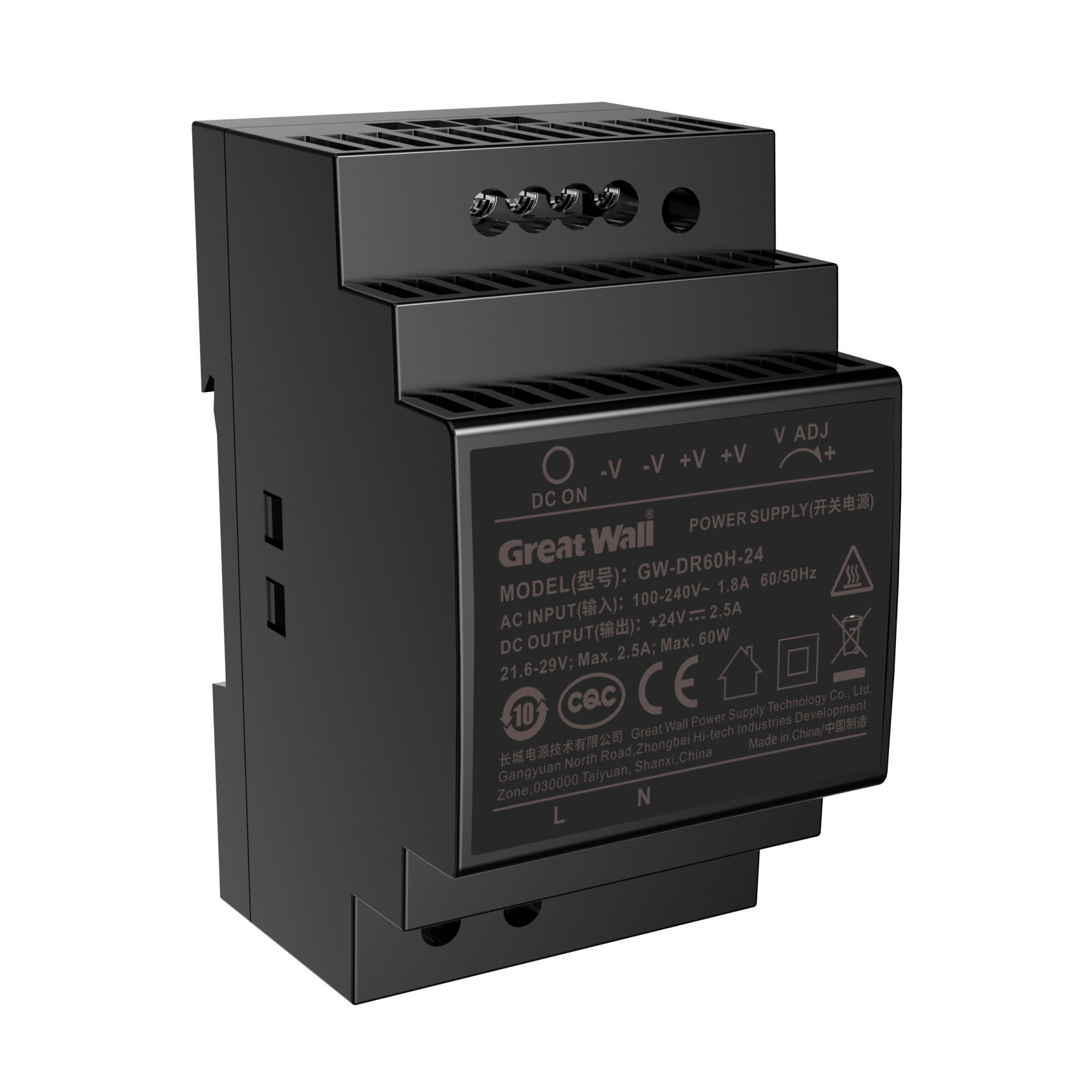

GW-DR60H-24
GW-DR60H-24
 AC/DC 85-264Vac 120-370Vdc 24 2.5 60 / -30℃～+70℃ CE/CQC/CB / 90 52.5x92.67x58.4mm 塑胶外壳导轨

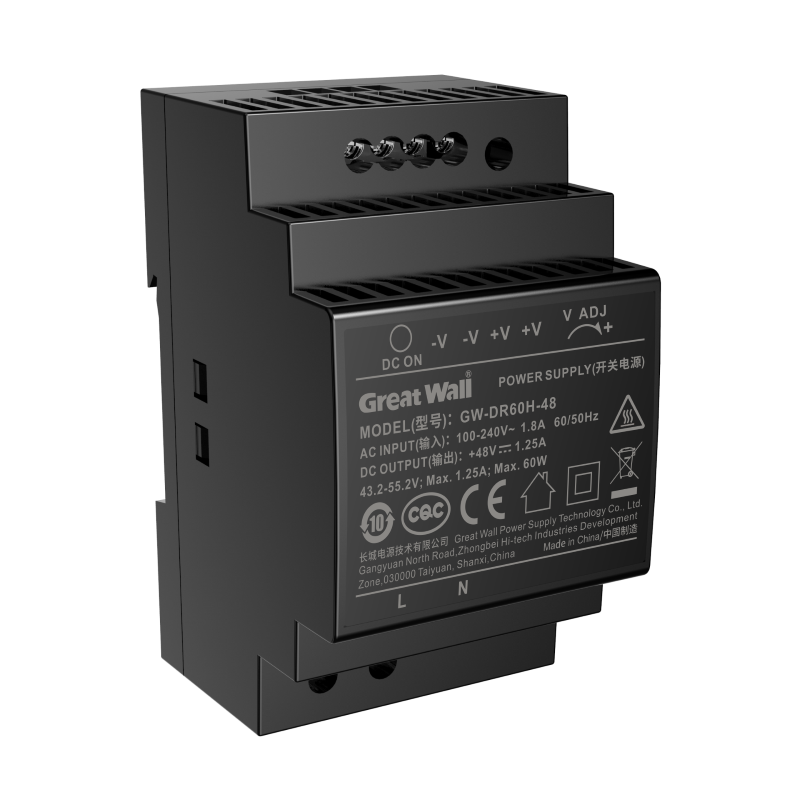

GW-DR60H-48
GW-DR60H-48
 AC/DC 85-264Vac 120-370Vdc 48 1.25 60 / -30℃～+70℃ CE/CQC/CB / 91 52.5x92.67x58.4mm 塑胶外壳导轨
GW-DR100H-12
GW-DR100H-12
 AC/DC 85-264Vac 120-370Vdc 12 7.5 90 / -30℃～+70℃ CE/CQC/CB / 89.5 70x92.21x58.4mm 塑胶外壳导轨

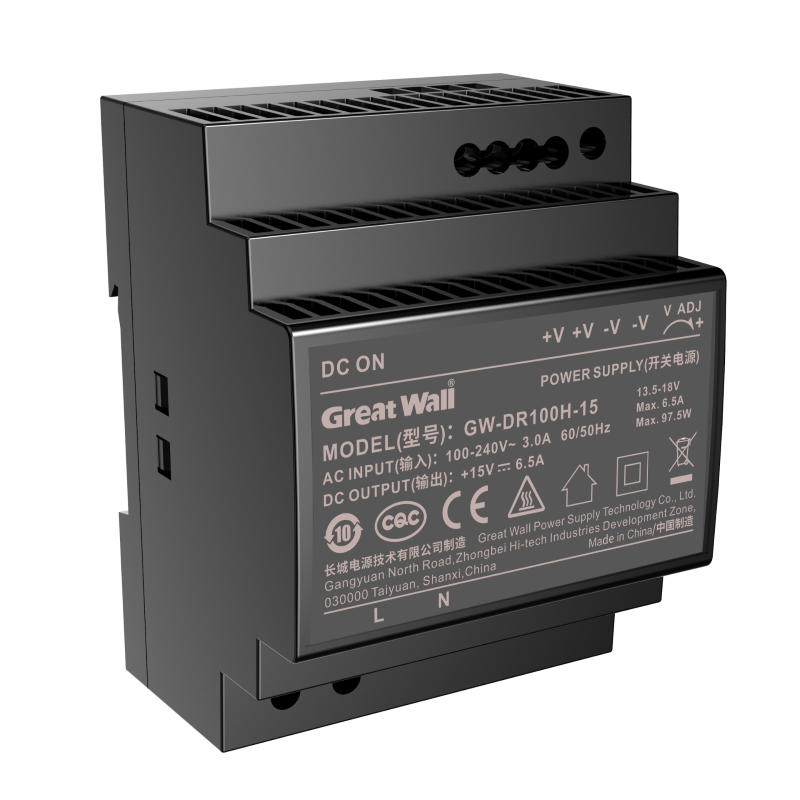

GW-DR100H-15
GW-DR100H-15
 AC/DC 85-264Vac 120-370Vdc 15 6.5 97.5 / -30℃～+70℃ CE/CQC/CB / 90.5 70x92.21x58.4mm 塑胶外壳导轨
GW-DR100H-24
GW-DR100H-24
 AC/DC 85-264Vac 120-370Vdc 24 4.2 100.8 / -30℃～+70℃ CE/CQC/CB / 91.5 70x92.21x58.4mm 塑胶外壳导轨

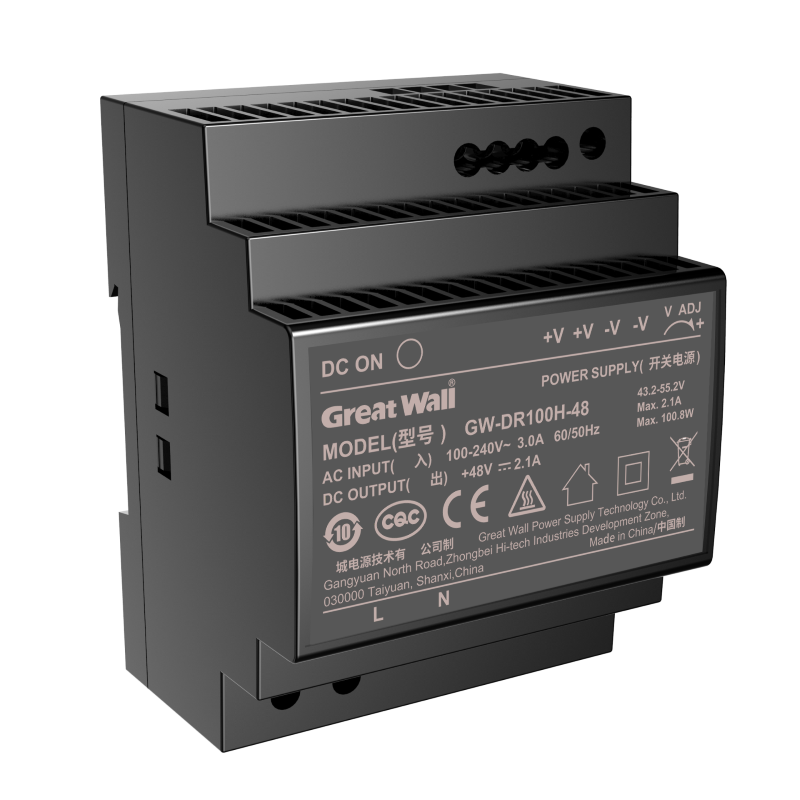

GW-DR100H-48
GW-DR100H-48
 AC/DC 85-264Vac 120-370Vdc 48 2.1 100.8 / -30℃～+70℃ CE/CQC/CB / 90.5 70x92.21x58.4mm 塑胶外壳导轨
GW-DR150H-12
GW-DR150H-12
 AC/DC 85-264Vac 120-370Vdc 12 11.3 135.6 / -30℃～+70℃ CE/CQC/CB / 89.7 105x91.83x58.4mm 塑胶外壳导轨

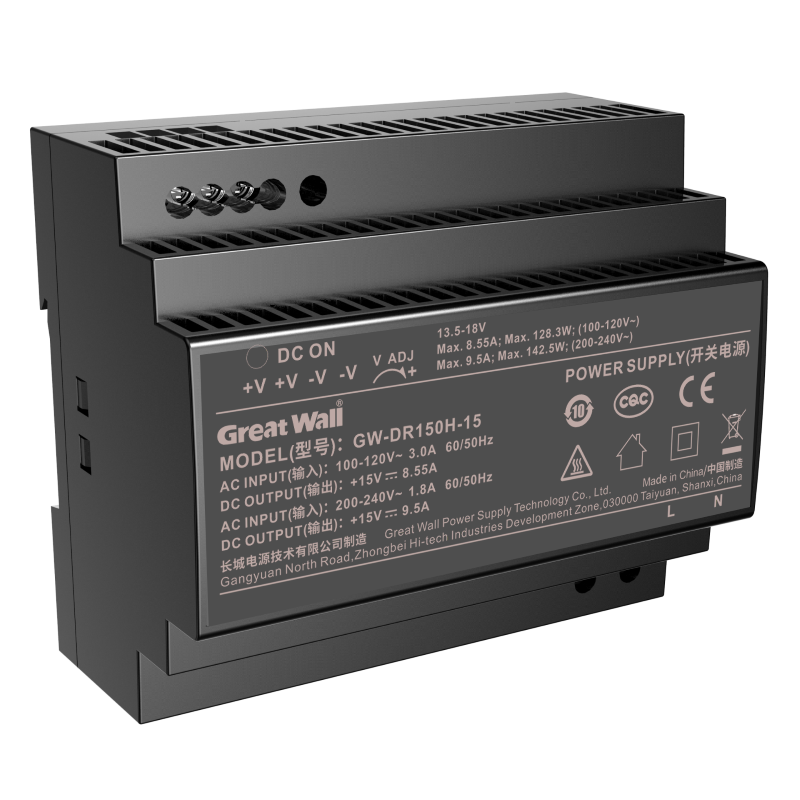

GW-DR150H-15
GW-DR150H-15
 AC/DC 85-264Vac 120-370Vdc 15 9.5 142.5 / -30℃～+70℃ CE/CQC/CB / 90.1 105x91.83x58.4mm 塑胶外壳导轨
GW-DR150H-24
GW-DR150H-24
 AC/DC 85-264Vac 120-370Vdc 24 6.25 150 / -30℃～+70℃ CE/CQC/CB / 91.7 105x91.83x58.4mm 塑胶外壳导轨
GW-DR150H-48
GW-DR150H-48
 AC/DC 85-264Vac 120-370Vdc 48 3.2 153.6 / -30℃～+70℃ CE/CQC/CB / 91.2 105x91.83x58.4mm 塑胶外壳导轨
