DR Series

DR系列

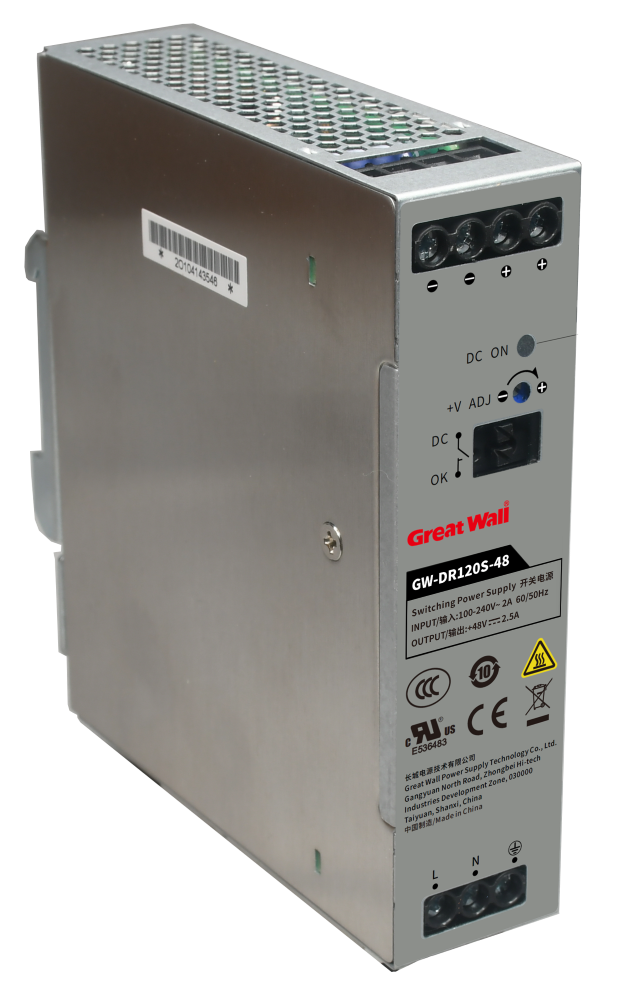

GW-DR120S-48

·输⼊电压范围：90-264Vac/127-370Vdc

·⼯作温度⾼达70℃

·⼯作效率⾼达93.5%

·输出低纹波噪声

·电源输出LED指⽰灯,并有DC OK功能

·输出电压值可调

·4242Vdc⾼隔离电压

·短路、过流、过压、过温保护

·满⾜5000m海拔应⽤

·符合IEC/EN/UL62368、GB4943、等认证标准

·安装导轨：TS-35/7.5或TS-35/15

·⾃然⻛冷

·150％峰值功率持续3秒输出

·内置主动PFC功能

·⾼可靠性，基板三防漆⼯艺

·固保期：3年

规格
电网类型 AC/DC
交流输入 90~264Vac
直流输入 127-370VDC
输出电压
（V） 		48
输出电流
（A） 		2.5
输出功率
（W） 		120
PFC APFC
输入输出接口
工作温度
（℃） 		-30℃～+70℃
安规认证 CE/CQC/CB
主电路架构 LLC谐振半桥
效率% 93.5
备注 导轨
外形尺寸(mm)
长x宽x高 		32x132.2x123.4mm
资源下载
GW-DR120S-48.rar
型号列表
系列标题 电网类型 交流输入 直流输入 输出电压
（V）		 输出电流
（A）		 输出功率
（W）		 PFC 输入输出接口 工作温度
（℃）		 安规认证 主电路架构 效率% 备注 外形尺寸(mm)
长x宽x高		 资料下载 认证标准 技术手册
DR系列
DR系列
 30-960W
-
-
-
GW-DR30H-5
GW-DR30H-5
 AC/DC 85-264VAC 120-370VDC 5 3 15 / -30℃～+70℃ CE/CQC/CB 单端反激 82 导轨 92.2x58.4x35mm
GW-DR30H-12
GW-DR30H-12
 AC/DC 85-264VAC 120-370VDC 12 2 24 / -30℃～+70℃ CE/CQC/CB 单端反激 88 导轨 92.2x58.4x35mm
GW-DR30H-15
GW-DR30H-15
 AC/DC 85-264VAC 120-370VDC 15 2 30 / -30℃～+70℃ CE/CQC/CB 单端反激 89 导轨 92.2x58.4x35mm
GW-DR30H-24
GW-DR30H-24
 AC/DC 85-264VAC 120-370VDC 24 1.5 36 / -30℃～+70℃ CE/CQC/CB 单端反激 89 导轨 92.2x58.4x35mm
GW-DR30H-48
GW-DR30H-48
 AC/DC 85-264VAC 120-370VDC 48 0.75 36 / -30℃～+70℃ CE/CQC/CB 单端反激 90 导轨 92.2x58.4x35mm
GW-DR60H-5
GW-DR60H-5
 AC/DC 85-264VAC 120-370VDC 5 6.5 32.5 / -30℃～+70℃ CE/CQC/CB 单端反激 85 导轨 W52.5xH92.67xD58.4mm
GW-DR60H-12
GW-DR60H-12
 AC/DC 85-264VAC 120-370VDC 12 4.5 54 / -30℃～+70℃ CE/CQC/CB 单端反激 88 导轨 92.67x58.4x52.5mm
GW-DR60H-15
GW-DR60H-15
 AC/DC 85-264VAC 120-370VDC 15 4 60 / -30℃～+70℃ CE/CQC/CB 单端反激 89 导轨 92.67x58.4x52.5mm
GW-DR60H-24
GW-DR60H-24
 AC/DC 85-264VAC 120-370VDC 24 2.5 60 / -30℃～+70℃ CE/CQC/CB 单端反激 90 导轨 92.67x58.4x52.5mm
GW-DR60H-48
GW-DR60H-48
 AC/DC 85-264VAC 120-370VDC 48 1.25 60 / -30℃～+70℃ CE/CQC/CB 单端反激 91 导轨 92.67x58.4x52.5mm
GW-DR100H-12
GW-DR100H-12
 AC/DC 85-264VAC 120-370VDC 12 7.5 90 / -30℃～+70℃ CE/CQC/CB 单端反激 89.5 导轨 92.2x58.4x70mm
GW-DR100H-15
GW-DR100H-15
 AC/DC 85-264VAC 120-370VDC 15 6.5 97.5 / -30℃～+70℃ CE/CQC/CB 单端反激 90.5 导轨 92.2x58.4x70mm
GW-DR100H-24
GW-DR100H-24
 AC/DC 85-264VAC 120-370VDC 24 4.2 100.8 / -30℃～+70℃ CE/CQC/CB 单端反激 91.5 导轨 92.2x58.4x70mm
GW-DR100H-48
GW-DR100H-48
 AC/DC 85-264VAC 120-370VDC 48 2.1 100.8 / -30℃～+70℃ CE/CQC/CB 单端反激 90.5 导轨 92.2x58.4x70mm
GW-DR150H-12
GW-DR150H-12
 AC/DC 85-264VAC 120-370VDC 12 11.3 135.6 / -30℃～+70℃ CE/CQC/CB 单端反激 89.7 导轨 91.83x58.4x105mm
GW-DR150H-15
GW-DR150H-15
 AC/DC 85-264VAC 120-370VDC 15 9.5 142.5 / -30℃～+70℃ CE/CQC/CB 单端反激 90.1 导轨 91.83x58.4x105mm
GW-DR150H-24
GW-DR150H-24
 AC/DC 85-264VAC 120-370VDC 24 6.25 150 / -30℃～+70℃ CE/CQC/CB 单端反激 91.7 导轨 91.83x58.4x105mm
GW-DR150H-48
GW-DR150H-48
 AC/DC 85-264VAC 120-370VDC 48 3.2 153.6 / -30℃～+70℃ CE/CQC/CB 单端反激 91.2 导轨 91.83x58.4x105mm
GW-DR40M-5
GW-DR40M-5
 AC/DC 85-264VAC 120-370VDC 5 6 30 / -20℃～+70℃ CE/CQC/CB 单端反激 78 导轨 90x100x40
GW-DR40M-12
GW-DR40M-12
 AC/DC 85-264VAC 120-370VDC 12 3.4 40.8 / -20℃～+70℃ CE/CQC/CB 单端反激 85 导轨 90x100x40
GW-DR40M-24
GW-DR40M-24
 AC/DC 85-264VAC 120-370VDC 24 1.7 40.8 / -20℃～+70℃ CE/CQC/CB 单端反激 87.5 导轨 90x100x40
GW-DR40M-48
GW-DR40M-48
 AC/DC 85-264VAC 120-370VDC 48 0.85 40.8 / -20℃～+70℃ CE/CQC/CB 单端反激 88 导轨 90x100x40
GW-DR75N-12
GW-DR75N-12
 AC/DC 90~264Vac 127-370VDC 12 6.3 75.6 / 螺丝 -25℃～+70℃ CE/CQC/CB 单端反激 85.5 导轨 132.2x123.4x32
GW-DR75N-24
GW-DR75N-24
 AC/DC 90~264Vac 127-370VDC 24 3.2 76.8 / -25℃～+70℃ CE/CQC/CB 单端反激 88.5 导轨 132.2x123.4x32
GW-DR75N-48
GW-DR75N-48
 AC/DC 90~264Vac 127-370VDC 48 1.6 76.8 / -25℃～+70℃ CE/CQC/CB 单端反激 89.5 导轨 132.2x123.4x32
GW-DR75S-12
GW-DR75S-12
 AC/DC 85-264VAC 120-370VDC 12 6.3 75.6 / 螺丝 -30℃～+70℃ CE/CQC/CB 单端反激 86.5 导轨 32x132.2x123.4
GW-DR75S-24
GW-DR75S-24
 AC/DC 85-264VAC 120-370VDC 24 3.2 76.8 / -30℃～+70℃ CE/CQC/CB 单端反激 89 导轨 32x132.2x123.4
GW-DR75S-48
GW-DR75S-48
 AC/DC 85-264VAC 120-370VDC 48 1.6 76.8 / -30℃～+70℃ CE/CQC/CB 单端反激 91 导轨 32x132.2x123.4
GW-DR120N-12
GW-DR120N-12
 AC/DC 85-264VAC 120-370VDC 12 10 120 / -20℃～+70℃ CE/CQC/CB 单端反激 86.5 导轨 132.2x123.4x32
GW-DR120N-24
GW-DR120N-24
 AC/DC 85-264VAC 120-370VDC 24 5 120 / -20℃～+70℃ CE/CQC/CB 单端反激 88.5 导轨 132.2x123.4x32
GW-DR120N-48
GW-DR120N-48
 AC/DC 85-264VAC 120-370VDC 48 2.5 120 / -20℃～+70℃ CE/CQC/CB 单端反激 90 导轨 132.2x123.4x32
GW-DR120S-12
GW-DR120S-12
 AC/DC 90~264Vac 127-370VDC 12 10 120 APFC -30℃～+70℃ CE/CQC/CB LLC谐振半桥 92.5 导轨 32x132.2x123.4mm
GW-DR120S-24
GW-DR120S-24
 AC/DC 90~264Vac 127-370VDC 24 5 120 APFC -30℃～+70℃ CE/CQC/CB LLC谐振半桥 94 导轨 32x132.2x123.4mm
GW-DR120S-48
GW-DR120S-48
 AC/DC 90~264Vac 127-370VDC 48 2.5 120 APFC -30℃～+70℃ CE/CQC/CB LLC谐振半桥 93.5 导轨 32x132.2x123.4mm
GW-DR240N-12
GW-DR240N-12
 AC/DC 85-264VAC 120-370VDC 12 16 192 APFC -40℃～+70℃ CE/CQC/CB LLC谐振半桥 91 导轨 132.2x123.4x41
GW-DR240N-24
GW-DR240N-24
 AC/DC 85-264VAC 120-370VDC 24 10 240 APFC -40℃～+70℃ CE/CQC/CB LLC谐振半桥 93 导轨 132.2x123.4x41
GW-DR240N-48
GW-DR240N-48
 AC/DC 85-264VAC 120-370VDC 48 5 240 APFC -40℃～+70℃ CE/CQC/CB LLC谐振半桥 93 导轨 132.2x123.4x41
GW-DR240S-12
GW-DR240S-12
 AC/DC 90~264Vac 127-370VDC 12 16 192 APFC -30℃～+70℃ CE/CQC/CB LLC谐振半桥 92 导轨 41x132.2x123.4mm
GW-DR240S-24
GW-DR240S-24
 AC/DC 90~264Vac 127-370VDC 24 10 240 APFC -30℃～+70℃ CE/CQC/CB LLC谐振半桥 94 导轨 41x132.2x123.4mm
GW-DR240S-48
GW-DR240S-48
 AC/DC 90~264Vac 127-370VDC 48 5 240 APFC -30℃～+70℃ CE/CQC/CB LLC谐振半桥 94 导轨 41x132.2x123.4mm
GW-DR480S-24
GW-DR480S-24
 AC/DC 90~264Vac 127-370VDC 24 20 480 APFC -40℃～+70℃ CCC/CE LLC谐振半桥 94.5 导轨 W55xH125xD131.5
GW-DR480S-48
GW-DR480S-48
 AC/DC 90~264Vac 127-370VDC 48 10 480 APFC -40℃～+70℃ CCC/CE LLC谐振半桥 94.5 导轨 W55xH125xD131.5
GW-DR960S-24
GW-DR960S-24
 AC/DC 85-277VAC 120-390VDC 24 40 960 APFC -40℃～+85℃ CCC/CE LLC谐振半桥 95.2 导轨 140x130x125
GW-DR960S-48
GW-DR960S-48
 AC/DC 85-277VAC 120-390VDC 48 20 960 APFC -40℃～+85℃ CCC/CE LLC谐振半桥 95.6 导轨 140x130x125
